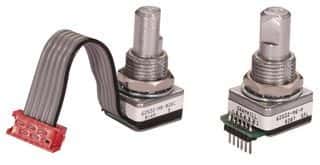

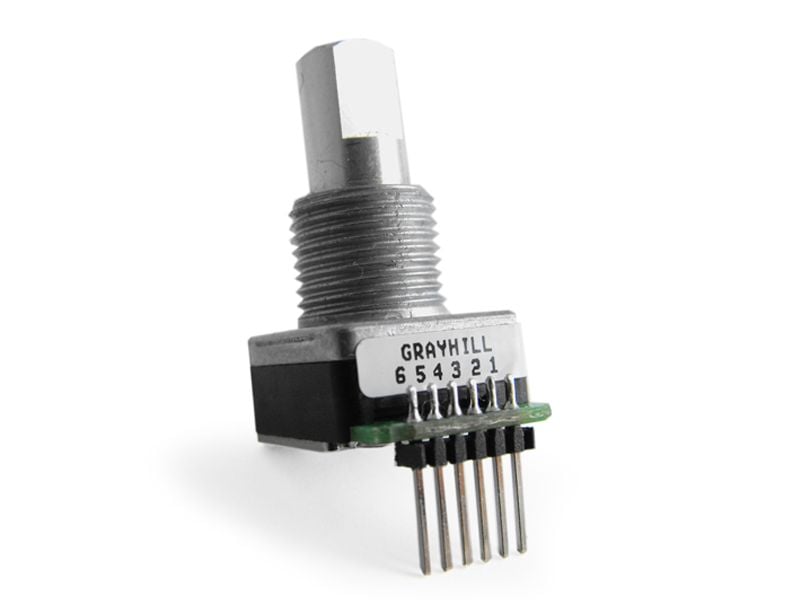

This optical encoder is a 16-position right angle panel mount device with a nominal supply voltage of 5V and an operating temperature range of -40°C to 85°C. It has a current rating of 25mA and is RoHS compliant. The encoder is lead-free and has a contact plating of tin. It is not a built-in switch and has a detent feature. The encoder is available in a single package quantity and has a termination of cable.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 62S22-M0-020C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | No |
| Contact Plating | Tin |
| Current Rating | 25mA |
| Detent | Yes |
| Encoder Type | Optical |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Panel |
| Nominal Supply Voltage (DC) | 5V |
| Number of Positions | 16 |
| Operating Supply Voltage | 5V |
| Orientation | Right Angle |
| Output Type | Quadrature, Incremental |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 62S |
| Termination | Cable |
| RoHS | Compliant |
