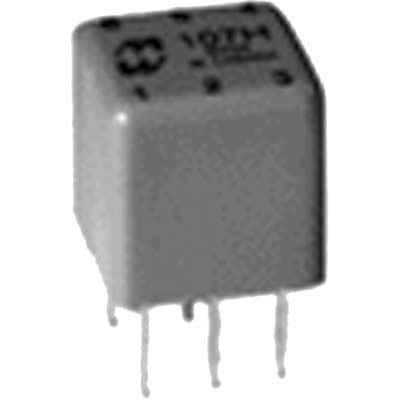

The 107H audio transformer features a DC resistance of 60 ohms and operates at a frequency of 50 kHz. It has a height of 0.83 inch and a seated height of 16 mm. The transformer is lead free and RoHS compliant, making it suitable for environmentally friendly applications. It is available in a through hole package and is suitable for use in audio applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 107H datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| DC Resistance (DCR) | 60R |
| Frequency | 50kHz |
| Height | 0.83inch |
| Height - Seated (Max) | 16mm |
| Insertion Loss | 1.5dB |
| Lead Free | Lead Free |
| Length | 16mm |
| Mount | Through Hole, PCB |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 600R |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | 107 |
| Shielding | Unshielded |
| Termination | PC Pin |
| Turns Ratio | 1:1 |
| Weight | 0.02lb |
| Width | 14.88mm |
| RoHS | Compliant |
