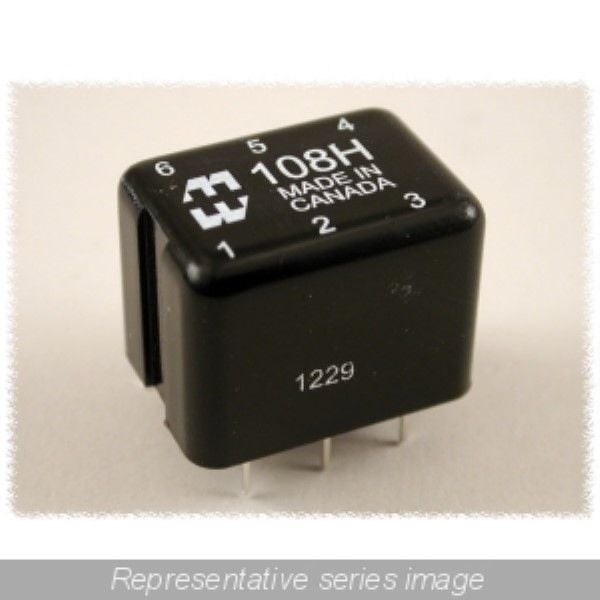

The 108K transformer from Hammond is a 600:1 ratio device with a DC resistance of 140 ohms. It measures 19.6mm in height and 26.16mm in length, with a seated height of 19.56mm. The transformer is designed for through hole mounting and is available in bulk packaging. It has a primary impedance of 1.5 kilohms and a secondary impedance of 600 ohms. The device is RoHS compliant and features a turns ratio of 1.58:1.
Sign in to ask questions about the Hammond 108K datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Hammond 108K technical specifications.
| Package/Case | 600 |
| DC Resistance (DCR) | 140R |
| Height | 19.6mm |
| Height - Seated (Max) | 19.56mm |
| Insertion Loss | 1.5dB |
| Length | 26.16mm |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 1.5kR |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | 108 |
| Shielding | Unshielded |
| Termination | PC Pin |
| Turns Ratio | 1.58:1 |
| Weight | 0.08lb |
| Width | 19.56mm |
| RoHS | Compliant |
