The 109J is a general purpose audio transformer with a primary impedance of 1kR and a secondary impedance of 600R. It has an insertion loss of 1.5dB and is designed for through hole mounting. The transformer is RoHS compliant and available in bulk packaging.
Package600
MountingThrough Hole
Quick Jump:
Technical Specifications
Hammond 109J technical specifications.
General
| Package/Case | 600 |
| DC Resistance (DCR) | 64R |
| Height | 23.4mm |
| Height - Seated (Max) | 23.37mm |
| Insertion Loss | 1.5dB |
| Length | 33.53mm |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 1kR |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | 109 |
| Shielding | Unshielded |
| Termination | PC Pin |
| Turns Ratio | 1.29:1 |
| Width | 23.62mm |
Compliance
| RoHS | Compliant |
Datasheet
Hammond 109J Datasheet
Download the complete datasheet for Hammond 109J to view detailed technical specifications.
No datasheet is available for this part.

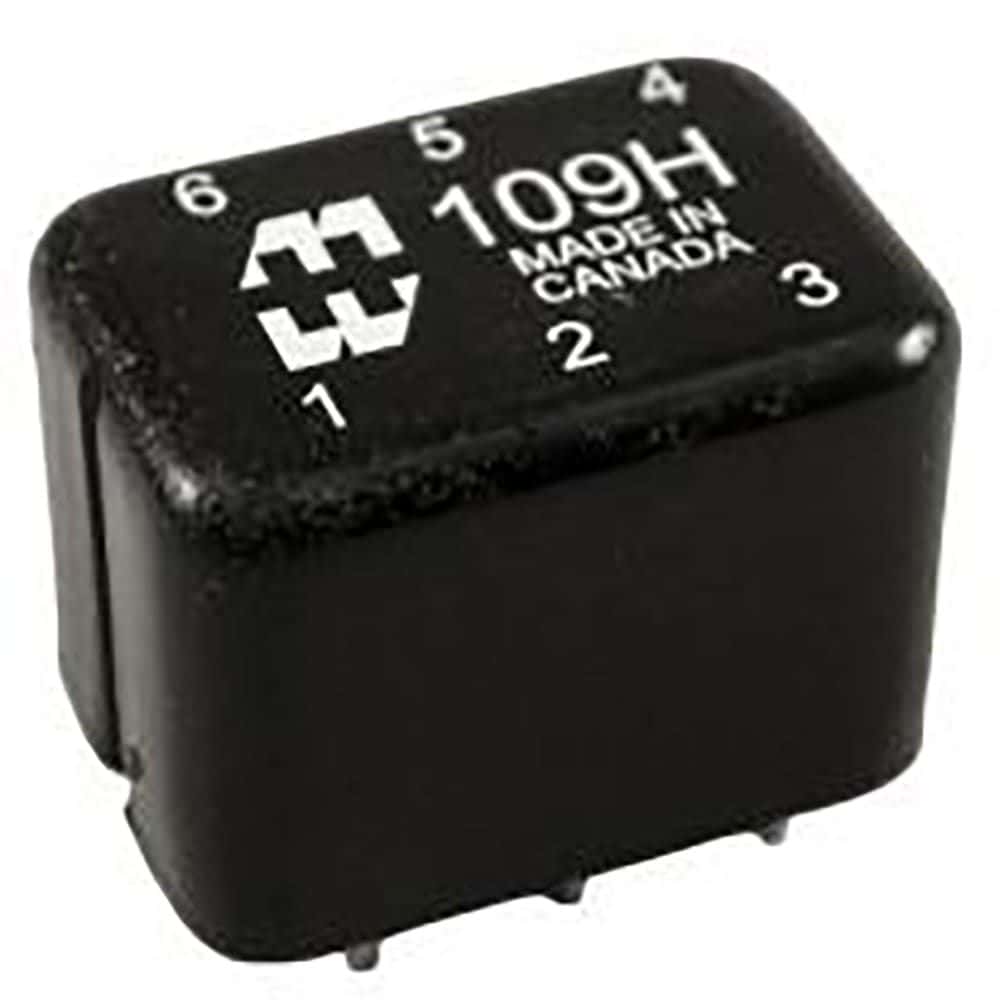

Product Images
