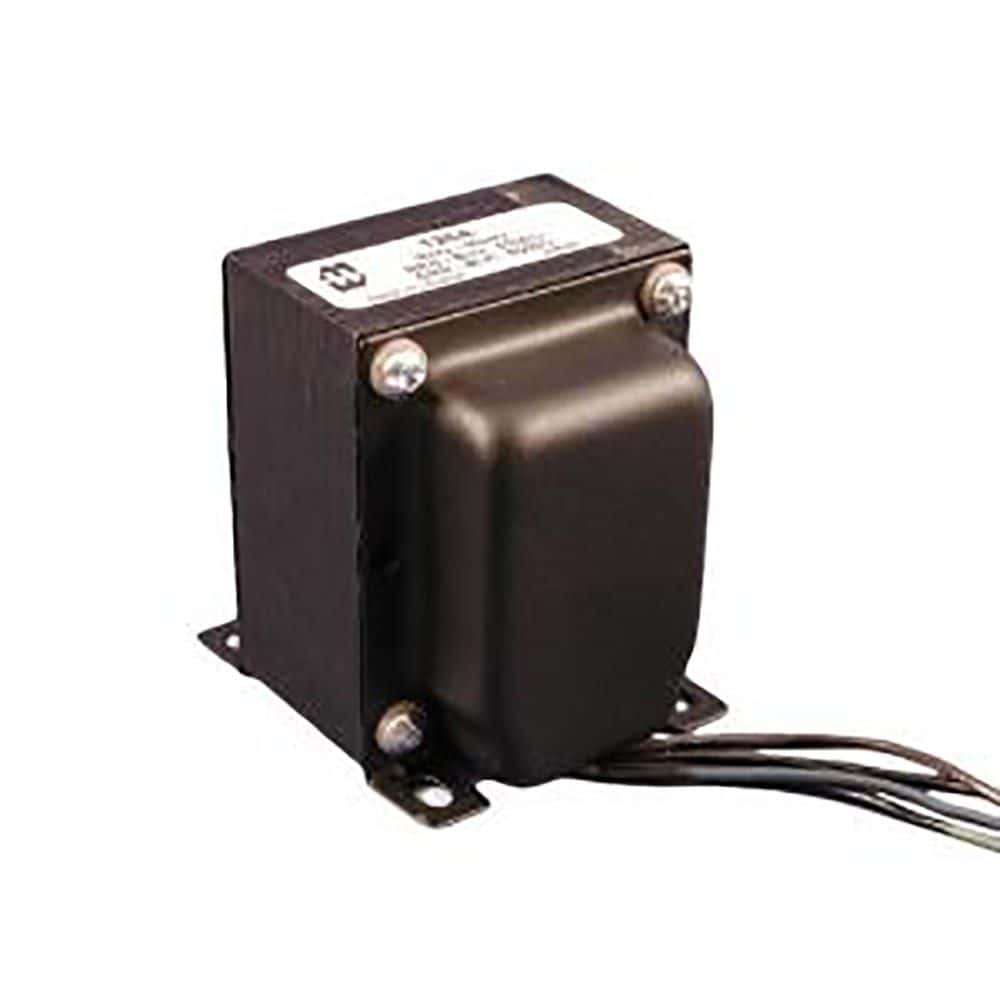

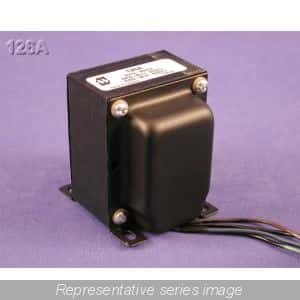

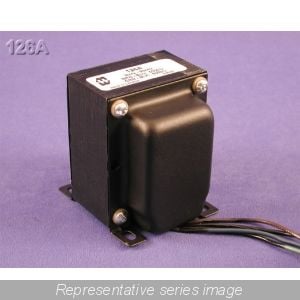

The 126C transformer from Hammond is a flange mount audio transformer with a core material of steel. It has a current rating of 15mA and a DC resistance of 375 ohms. The inductance is 106 henries. The transformer is unshielded and has wire leads for termination. It is RoHS compliant and packaged in a box with a quantity of one. The physical dimensions are 79.25mm in length, 63.5mm in width, and 2.5 inches in height, with a seated height of 79.25mm. The weight is 3.2 pounds.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 126C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Core Material | Steel |
| Current | 15mA |
| Current Rating | 15mA |
| DC Resistance (DCR) | 375R |
| Height | 2.5inch |
| Height - Seated (Max) | 79.25mm |
| Inductance | 106H |
| Insertion Loss | 1dB |
| Length | 79.25mm |
| Max DC Current | 15mA |
| Mount | Chassis Mount |
| Package Quantity | 1 |
| Packaging | Box |
| Primary Impedance | 10kR |
| RoHS Compliant | Yes |
| Secondary Impedance | 10kR |
| Series | 126 |
| Shielding | Unshielded |
| Termination | Wire Leads |
| Weight | 3.2lb |
| Width | 63.5mm |
| RoHS | Compliant |
