Audio transformer featuring a 600 Ohm primary impedance and 8 Ohm secondary impedance. Designed for through-hole mounting with PC pin termination, this component offers a 4mA current rating and a primary DC resistance of 53 Ohms, with a secondary DC resistance of 95 Ohms. It operates at up to 250Vrms and exhibits insertion loss values of 1dB and 0.5dB. Dimensions include a width and height of 20.83mm and a length of 26.92mm.
Current4mA
Current Rating4mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Hammond 149U technical specifications.
General
| Current | 4mA |
| Current Rating | 4mA |
| DC Resistance (DCR) | 53R |
| Height | 20.8mm |
| Height - Seated (Max) | 20.83mm |
| Insertion Loss | 1dB |
| Insertion Loss | 0.5dB |
| Length | 26.92mm |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 150R |
| Primary Impedance | 600R |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Impedance | 8R |
| Series | 149 |
| Termination | PC Pin |
| Weight | 0.063lb |
| Width | 20.83mm |
Compliance
| RoHS | Compliant |
Datasheet
Hammond 149U Datasheet
Download the complete datasheet for Hammond 149U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

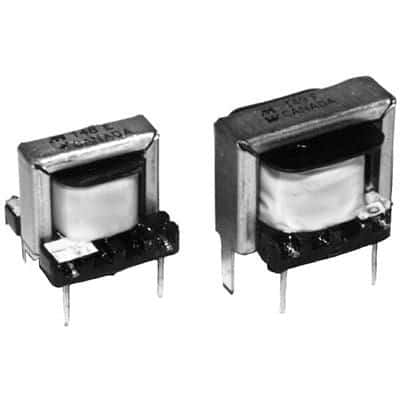

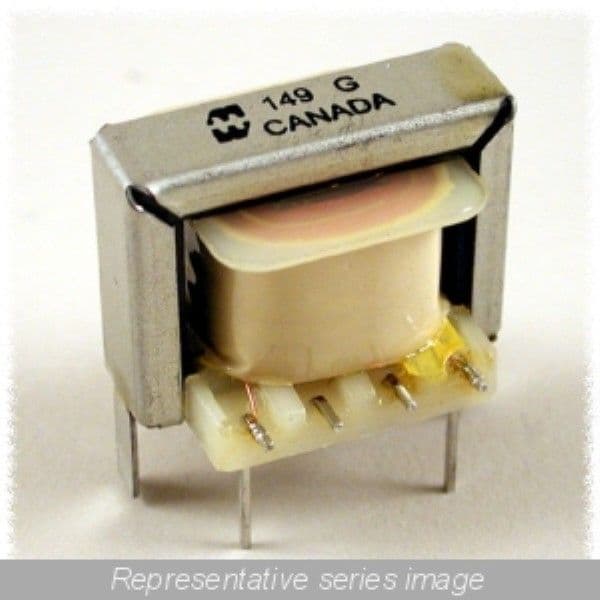

Product Images
