Technical Specifications
Hammond 1554BGY technical specifications.
General
Approvals
UL, NEMA
Body Material
ABS
Color
Grey
Depth
1.6inch
Flammability Rating
UL94 HB
Height
40mm
Housing Color
Grey
Lead Free
Lead Free
Length
65mm
Material
ABS, Plastic, ACRYLONITRILE BUTADIENE STYRENE
Max Operating Temperature
120°C
Min Operating Temperature
-40°C
Mount
Wall
Package Quantity
1
Packaging
Bulk
Ratings
IP66
Reach SVHC Compliant
No
Series
1554
Weight
6.349313oz
Width
2.6inch
Compliance
RoHS
Compliant
Datasheet
Hammond 1554BGY Datasheet
Download the complete datasheet for Hammond 1554BGY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

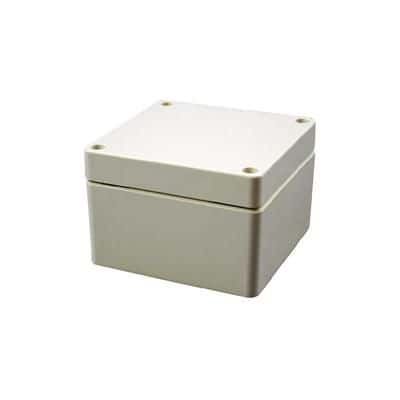

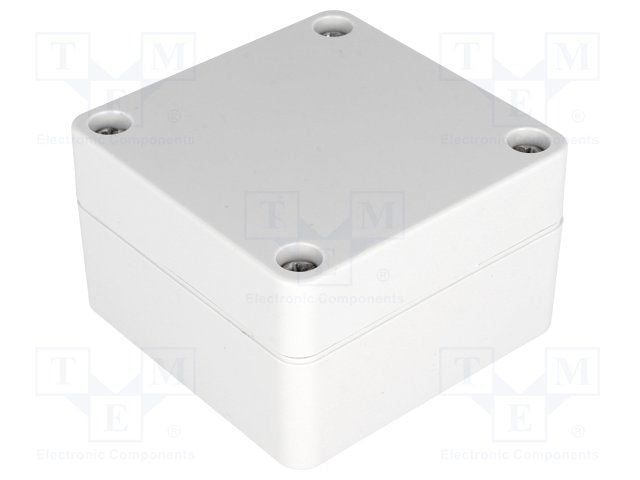

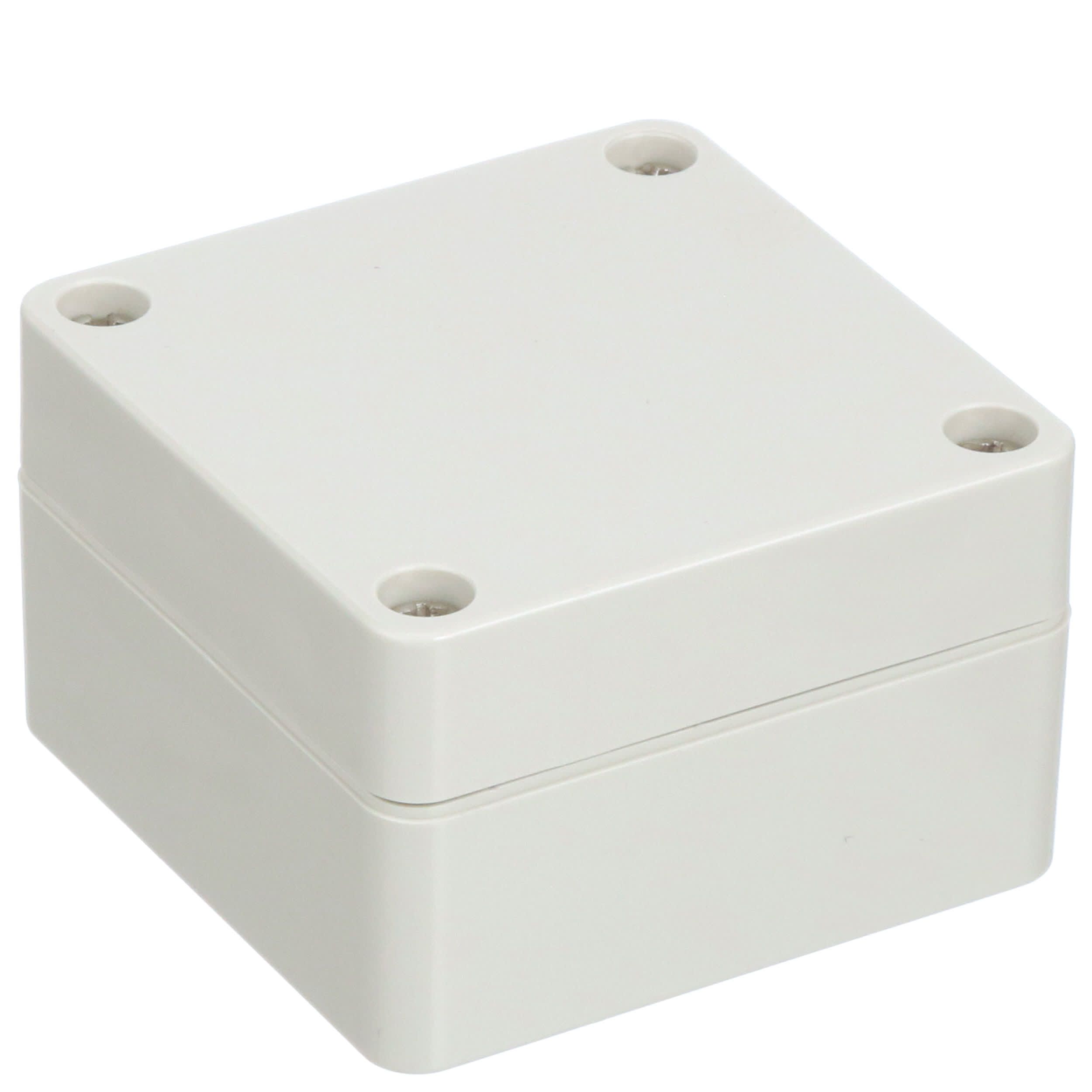

Product Images
