Technical Specifications

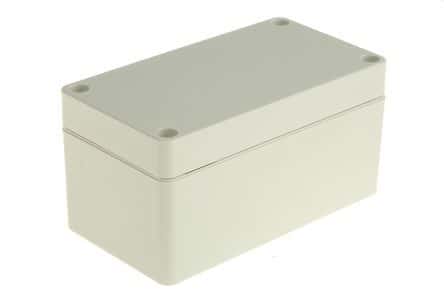

Hammond 1554DGY technical specifications.
General
Approvals
UL, NEMA
Body Material
ABS
Package/Case
120
Color
Grey
Depth
2.4inch
Flammability Rating
UL94 HB
Height
60mm
Housing Color
Grey
Lead Free
Lead Free
Length
120mm
Material
ABS, Plastic, ACRYLONITRILE BUTADIENE STYRENE
Max Operating Temperature
120°C
Min Operating Temperature
-40°C
Mount
Wall
Package Quantity
1
Packaging
Bulk
Ratings
IP66, IP65
Reach SVHC Compliant
No
Series
1554
Weight
13.051366oz
Width
2.6inch
Compliance
RoHS
Compliant
Datasheet
Hammond 1554DGY Datasheet
Download the complete datasheet for Hammond 1554DGY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
