Quick Jump:
Technical Specifications

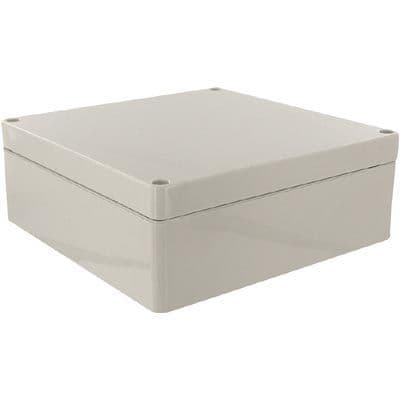

Hammond 1554R2GY technical specifications.
General
Approvals
UL, NEMA
Body Material
Polycarbonate
Color
Grey
Depth
2.4inch
Flammability Rating
UL94 5VA
Height
2.362inch
Housing Color
Grey
Length
6.299inch
Material
Plastic, Polycarbonate, PC
Max Operating Temperature
120°C
Min Operating Temperature
-40°C
Mount
Wall
Package Quantity
1
Ratings
IP66
Reach SVHC Compliant
No
Series
1554
Thickness
0.128inch
Weight
0.82lb
Width
6.3inch
Compliance
RoHS
Compliant
Datasheet
Hammond 1554R2GY Datasheet
Download the complete datasheet for Hammond 1554R2GY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
