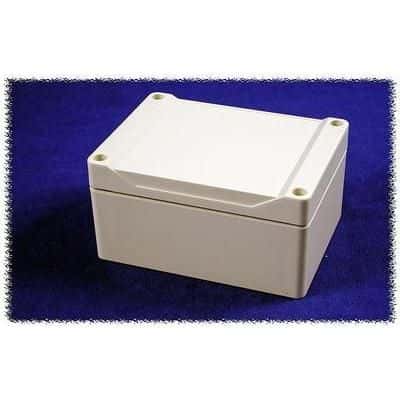

The 1555F2GY enclosure is a polycarbonate housing with a grey color, rated for operating temperatures between -40°C and 120°C. It has a depth of 2.4inch and a thickness of 0.118inch, with a weight of 0.4lb. The enclosure meets IP66 and IP68 ratings and is packaged in a bag with a quantity of one. It is made from plastic, polycarbonate, and PC materials and has a flammability rating of UL94 5VA, with approvals from UL and NEMA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1555F2GY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, NEMA |
| Body Material | Polycarbonate |
| Package/Case | 120 |
| Color | Grey |
| Depth | 2.4inch |
| Flammability Rating | UL94 5VA |
| Height | 2.362inch |
| Housing Color | Grey |
| Length | 4.724inch |
| Material | Plastic, Polycarbonate, PC |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Desktop |
| Package Quantity | 1 |
| Packaging | Bag |
| Ratings | IP66, IP68 |
| Series | 1555 |
| Thickness | 0.118inch |
| Weight | 0.4lb |
| Width | 3.5inch |
| RoHS | Compliant |
