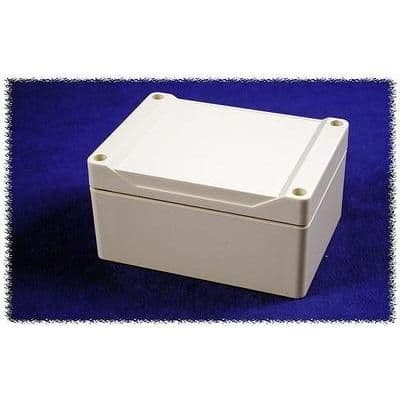

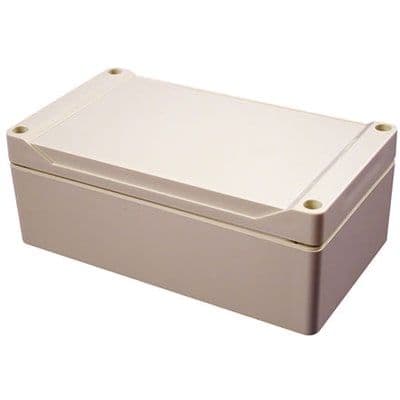

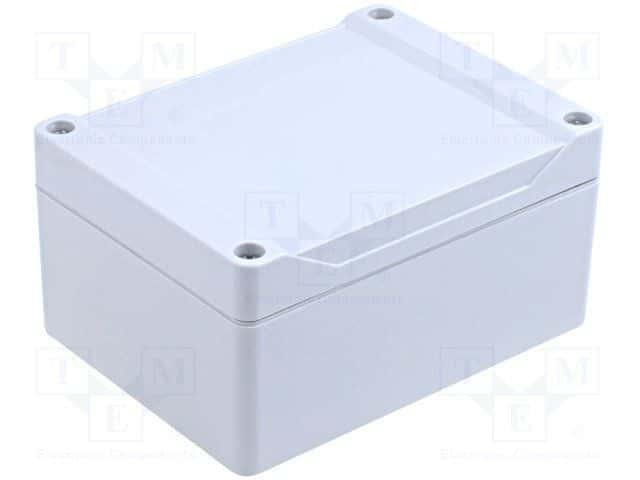

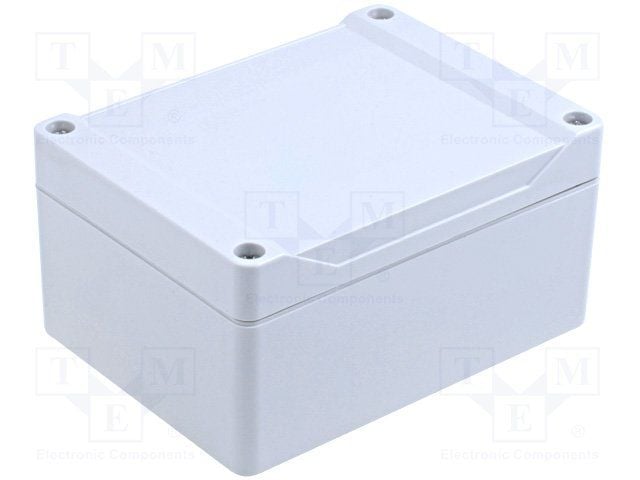

The 1555FGY enclosure is made from ABS material and features a grey color. It has a wall mount design and a flammability rating of UL94 HB. The enclosure is rated for operation between -40°C and 120°C and meets IP66 ratings. It is lead-free and compliant with UL and NEMA approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1555FGY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, NEMA |
| Body Material | ABS |
| Package/Case | 120 |
| Color | Grey |
| Depth | 2.4inch |
| Flammability Rating | UL94 HB |
| Height | 60mm |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 120mm |
| Material | ABS, Plastic, ACRYLONITRILE BUTADIENE STYRENE |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Wall |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | 1555 |
| Weight | 14.109585oz |
| Width | 3.5inch |
| RoHS | Compliant |
Download the complete datasheet for Hammond 1555FGY to view detailed technical specifications.
