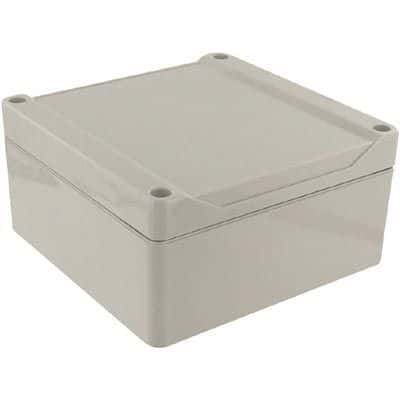

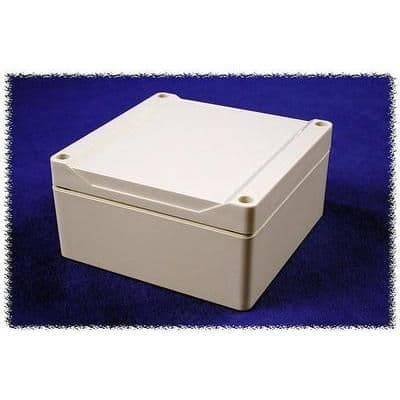

The Hammond 1555N2GY enclosure is a polycarbonate housing with a grey finish, measuring 120mm in package size. It has a desktop mount and is rated for operation between -40°C and 120°C. The enclosure is compliant with UL and NEMA approvals and has a flammability rating of UL94 5VA. It is packaged individually in a bag and has a weight of 0.23lb.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1555N2GY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, NEMA |
| Body Material | Polycarbonate |
| Package/Case | 120 |
| Color | Grey |
| Depth | 2.4inch |
| Flammability Rating | UL94 5VA |
| Height | 2.362inch |
| Housing Color | Grey |
| Length | 4.724inch |
| Material | Plastic, Polycarbonate, PC |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Desktop |
| Package Quantity | 1 |
| Packaging | Bag |
| Ratings | IP66, IP68 |
| Reach SVHC Compliant | No |
| Series | 1555 |
| Thickness | 0.118inch |
| Weight | 0.23lb |
| Width | 4.7inch |
| RoHS | Compliant |
