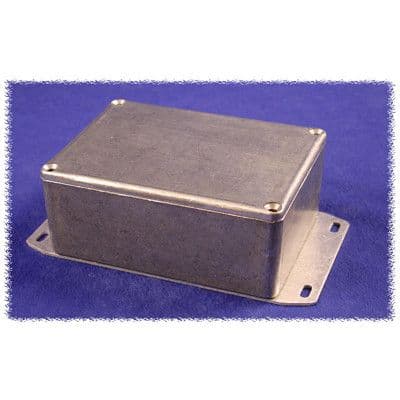

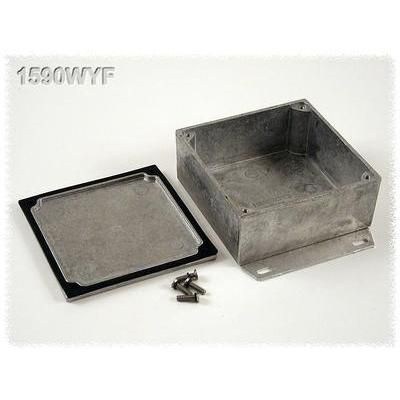

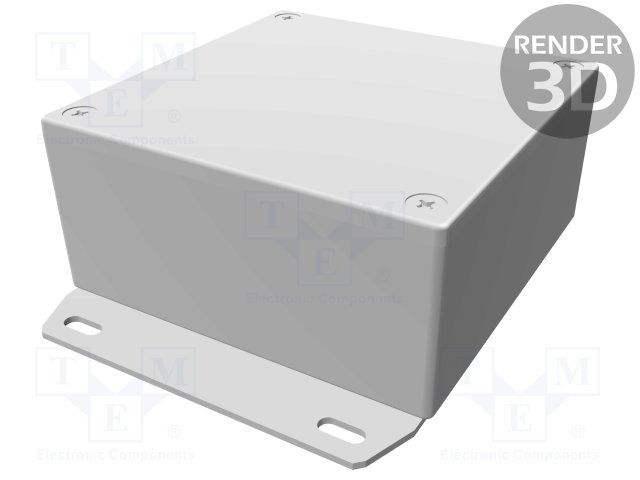

This Hammond enclosure is made of aluminium with a beige finish, rated for IP65 protection. It measures 3.622 inches in length and width, and 1.713 inches in height, with a thickness of 0.098 inch and a weight of 0.41 pounds. The enclosure is packaged individually in a bag.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1590WYF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Hammond 1590WYF technical specifications.
| Color | Beige |
| Height | 1.713inch |
| Length | 3.622inch |
| Material | Aluminium, Metal |
| Mount | Box |
| Package Quantity | 1 |
| Packaging | Bag |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| Series | 1590WF |
| Thickness | 0.098inch |
| Weight | 0.41lb |
| Width | 3.622inch |
| RoHS | Compliant |
