Watertight diecast instrument enclosure crafted from durable aluminum. Features a thick wall design for enhanced protection, with dimensions of 9.134 inches width, 4.341 inches height, and 13.071 inches length. Rated IP66 and IP65 for superior environmental sealing. External mounting provides convenient installation.
MountingExternal
Quick Jump:
Technical Specifications
Hammond 1590Z235 technical specifications.
General
| Color | Natural |
| Height | 4.341inch |
| Length | 13.071inch |
| Material | Aluminium, Metal |
| Mount | External |
| Package Quantity | 1 |
| Packaging | Bag |
| Ratings | IP66, IP65 |
| Reach SVHC Compliant | No |
| Series | 1590Z |
| Thickness | 0.169inch |
| Weight | 4.9lb |
| Width | 9.134inch |
Compliance
| RoHS | Compliant |
Datasheet
Hammond 1590Z235 Datasheet
Download the complete datasheet for Hammond 1590Z235 to view detailed technical specifications.
No datasheet is available for this part.

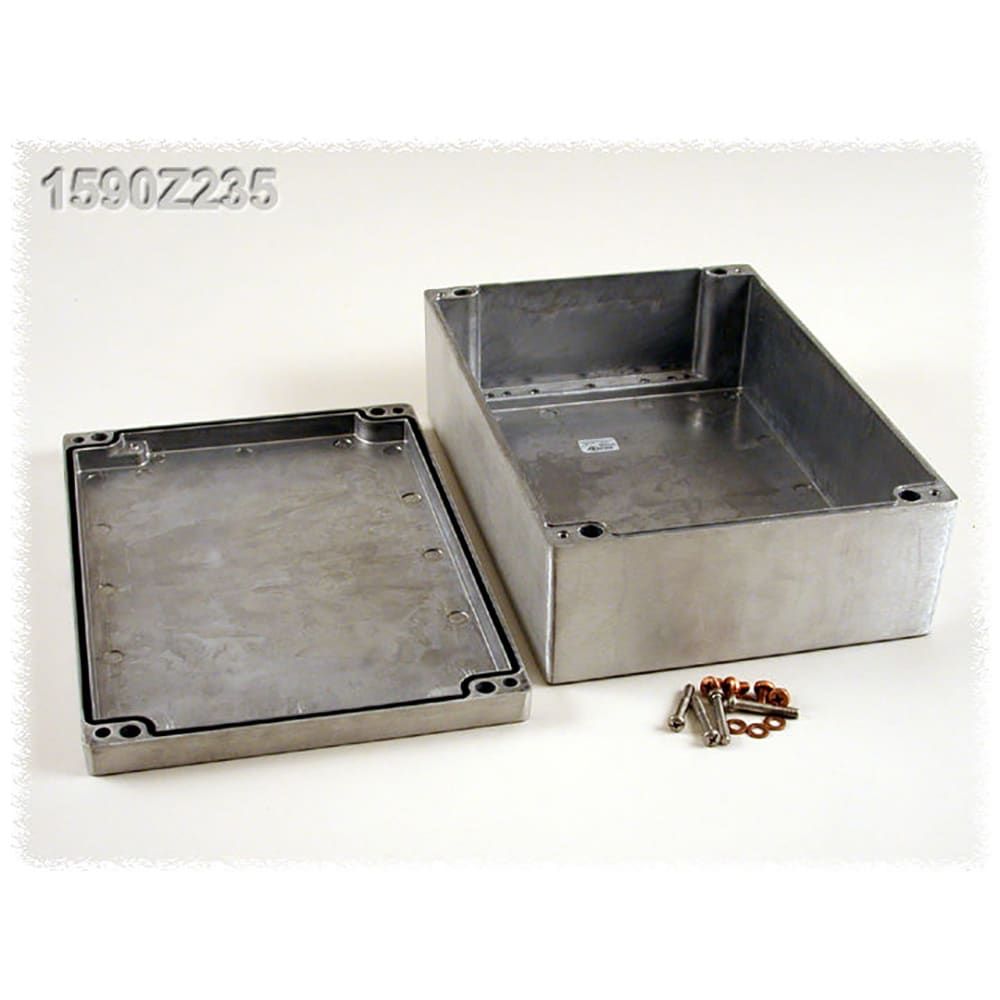

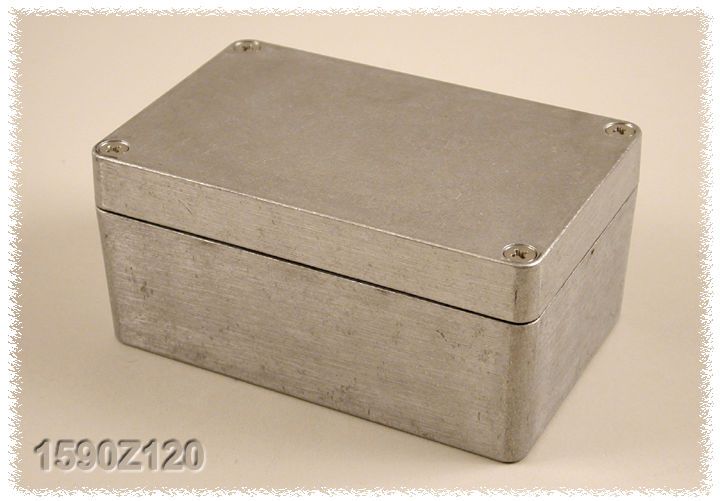

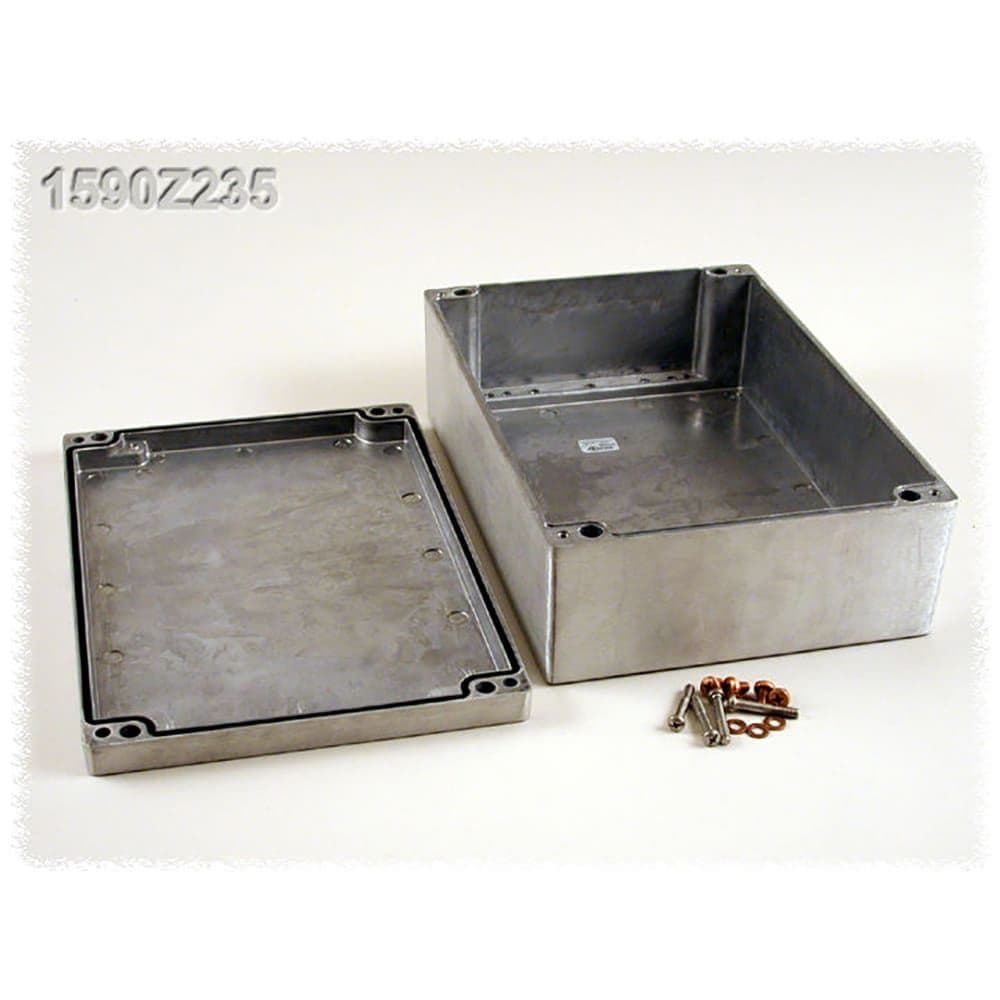

Product Images
