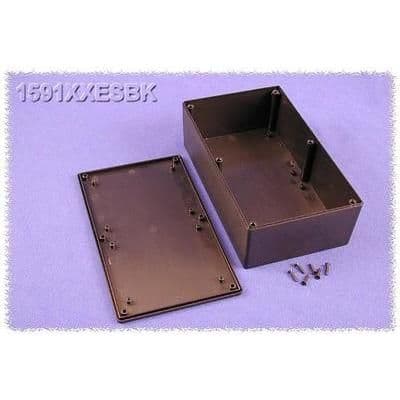

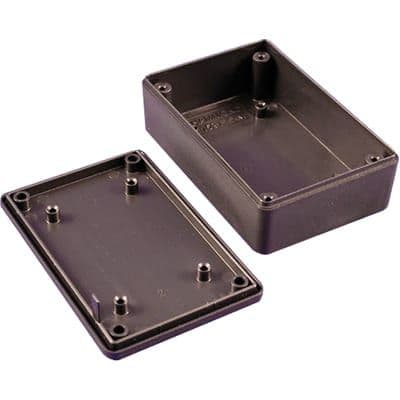

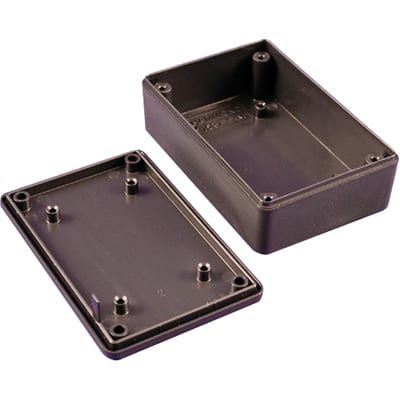

The Hammond 1591XXESBK wall mount enclosure is made from plastic, specifically ABS, ACRYLONITRILE BUTADIENE STYRENE, with a black color. It measures 2.47inch in height, 4.465inch in width, 7.615inch in length, and 0.079inch in thickness, weighing 0.41lb. The enclosure has an IP54 rating and meets UL94 V-0 flammability standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1591XXESBK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Depth | 113mm |
| Color | Black |
| Flammability Rating | UL94 V-0 |
| Height | 2.47inch |
| Length | 7.615inch |
| Material | Plastic, ABS, ACRYLONITRILE BUTADIENE STYRENE |
| Mount | External |
| Package Quantity | 1 |
| Packaging | Bag |
| Ratings | IP54 |
| Reach SVHC Compliant | No |
| Series | 1591XXS |
| Thickness | 0.079inch |
| Weight | 0.41lb |
| Width | 4.465inch |
| RoHS | Compliant |
