Technical Specifications
Hammond 1620 technical specifications.
General
| DC Resistance (DCR) | 74.6R |
| Height | 3.06inch |
| Height - Seated (Max) | 77.72mm |
| Insertion Loss | 1dB |
| Isolation Voltage | 2kV |
| Length | 88.55mm |
| Mount | Chassis Mount |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 6.6kR |
| RoHS Compliant | Yes |
| Secondary Impedance | 16R |
| Series | 1600 |
| Shielding | Shielded |
| Termination | Wire Leads |
| Weight | 3.5lb |
| Width | 63.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Hammond 1620 Datasheet
Download the complete datasheet for Hammond 1620 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

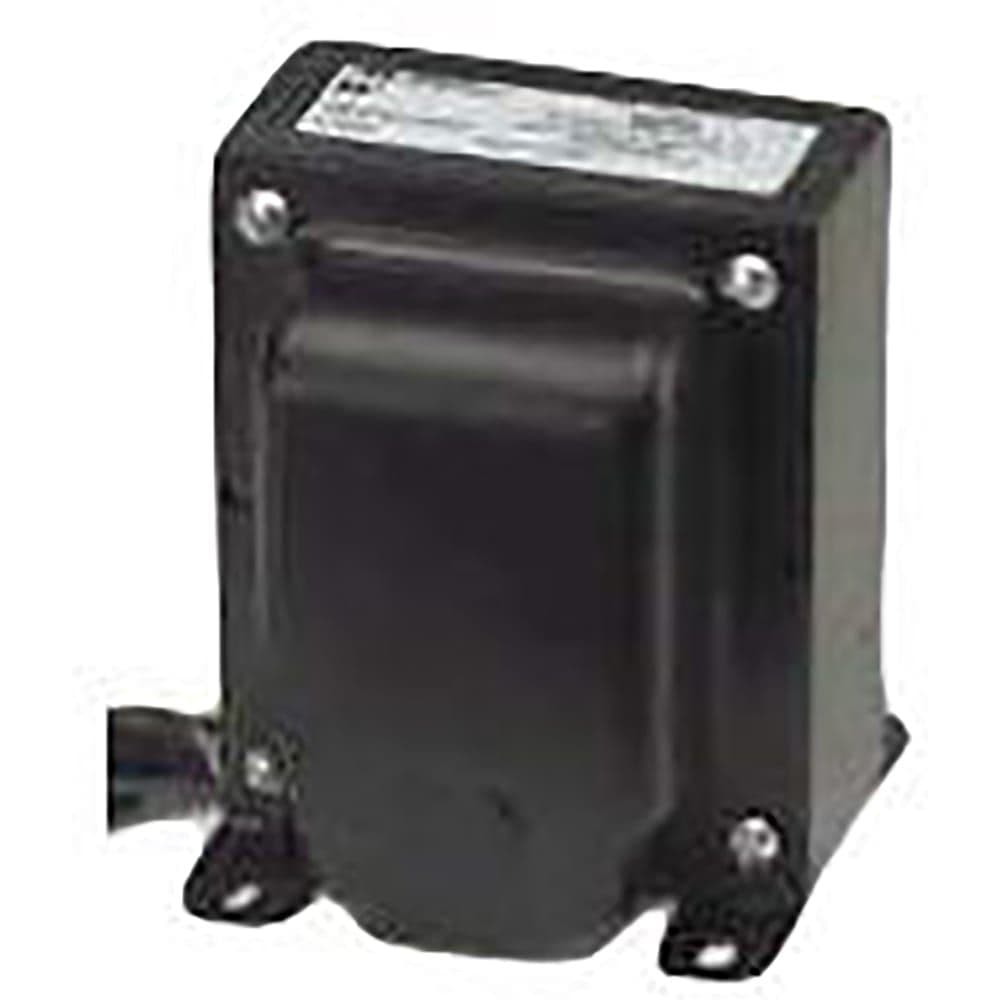

Product Images
