Hammond
1628SEA
Audio Transformer 2000Vrms 171Ohm Prim. DCR 0.413Ohm/0.514Ohm/0.720Ohm Sec. DCR 7 Terminal Wire Lead Flange Mount
Current120mA
MountingChassis Mount
Inductance48H
Quick Jump:
Technical Specifications
Hammond 1628SEA technical specifications.
General
Current
120mA
Height
4.56inch
Height - Seated (Max)
115.82mm
Inductance
48H
Insertion Loss
1dB
Lead Free
Lead Free
Length
114.3mm
Max DC Current
120mA
Mount
Chassis Mount
Package Quantity
1
Packaging
Box
Primary Impedance
5kR
RoHS Compliant
Yes
Secondary Impedance
16R
Series
1600
Shielding
Shielded
Termination
Wire Leads
Weight
11lb
Width
95.25mm
Compliance
RoHS
Compliant
Datasheet
Hammond 1628SEA Datasheet
Download the complete datasheet for Hammond 1628SEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

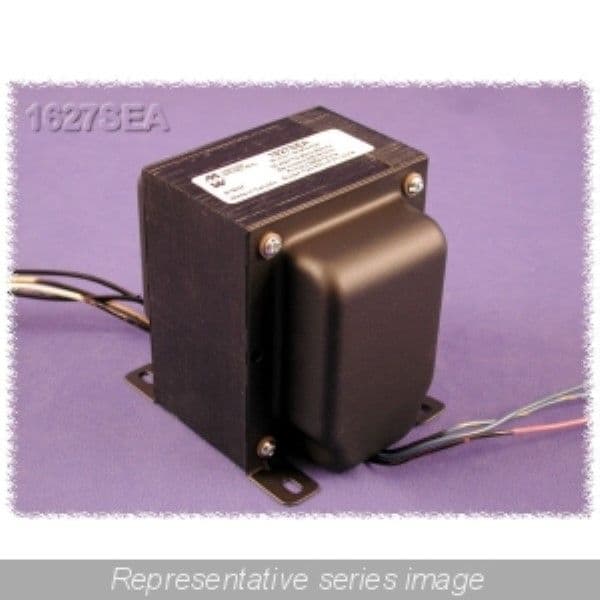

Product Images
