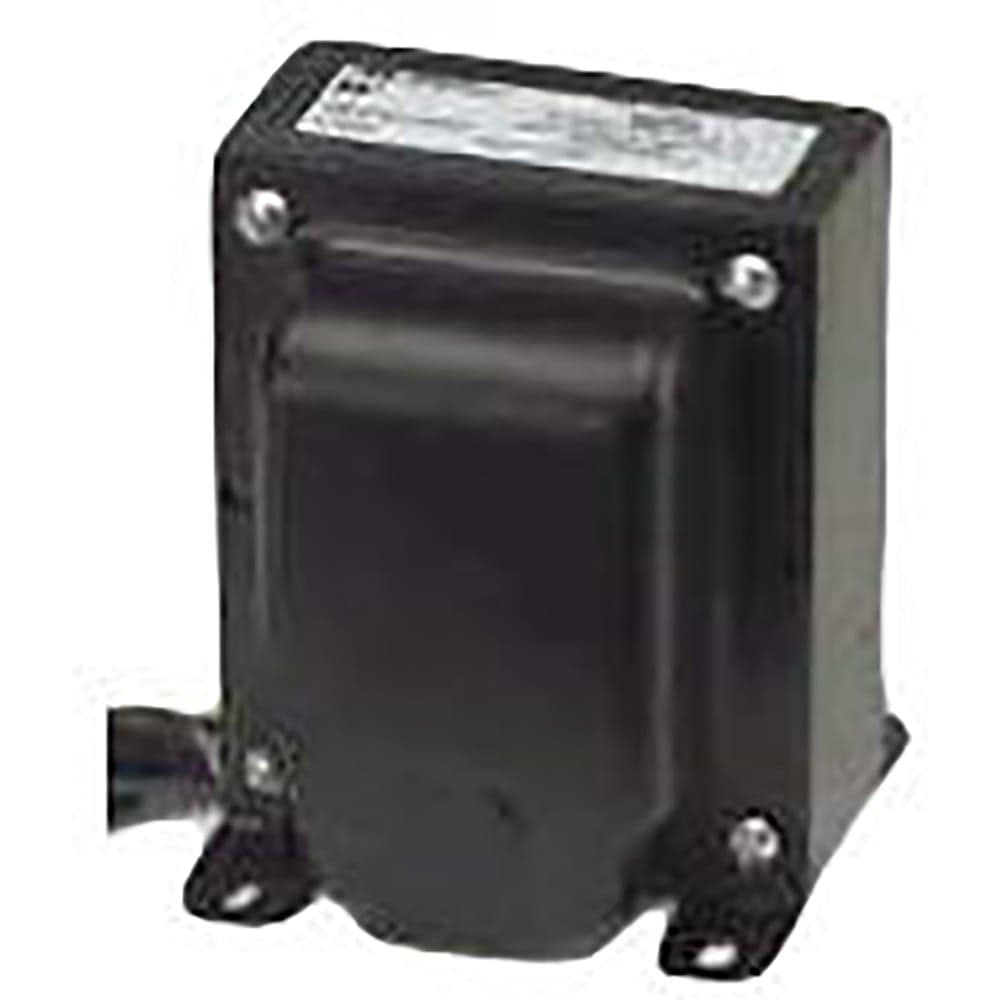

Hammond
1650H
Audio Transformer 2000VAC 145Ohm Prim. DCR 0.16Ohm/0.272Ohm Sec. DCR 9 Terminal Wire Lead Flange Mount
MountingChassis Mount
Quick Jump:
Technical Specifications
Hammond 1650H technical specifications.
General
Height
3.81inch
Height - Seated (Max)
96.77mm
Insertion Loss
1dB
Length
101.6mm
Mount
Chassis Mount
Package Quantity
1
Packaging
Bulk
Primary Impedance
6.6kR
RoHS Compliant
Yes
Secondary Impedance
16R
Series
1600
Shielding
Shielded
Termination
Wire Leads
Weight
6.5lb
Width
79.5mm
Compliance
RoHS
Compliant
Datasheet
Hammond 1650H Datasheet
Download the complete datasheet for Hammond 1650H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
