The Hammond 1650R is a shielded audio transformer with a primary impedance of 5kR and a secondary impedance of 16R. It is designed for chassis mount applications and is available in bulk packaging. The transformer has a maximum DC current rating of 318mA and an insertion loss of 1dB. It is RoHS compliant and features wire leads for easy termination.
MountingChassis Mount
Quick Jump:
Technical Specifications
Hammond 1650R technical specifications.
General
| Height | 4.56inch |
| Height - Seated (Max) | 115.82mm |
| Insertion Loss | 1dB |
| Length | 107.95mm |
| Max DC Current | 318mA |
| Mount | Chassis Mount |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 5kR |
| RoHS Compliant | Yes |
| Secondary Impedance | 16R |
| Series | 1600 |
| Shielding | Shielded |
| Termination | Wire Leads |
| Weight | 12lb |
| Width | 95.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Hammond 1650R Datasheet
Download the complete datasheet for Hammond 1650R to view detailed technical specifications.
No datasheet is available for this part.

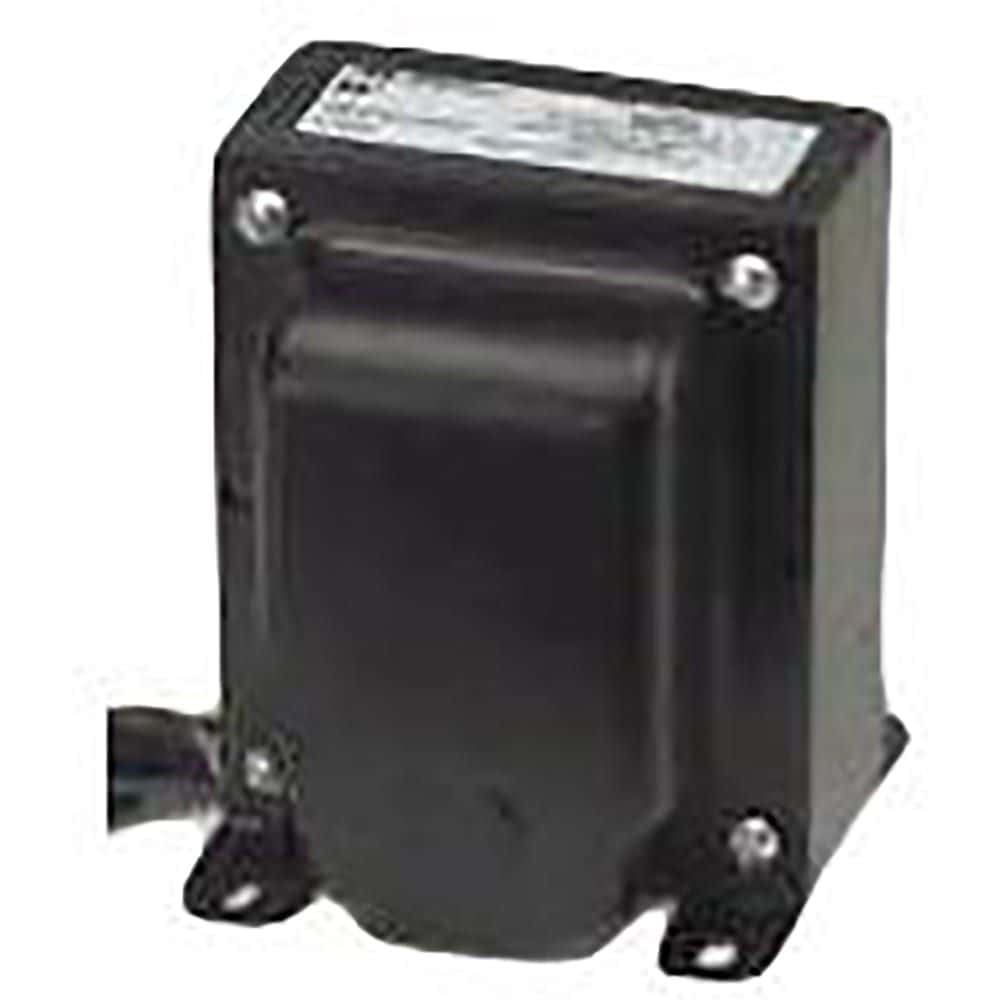

Product Images
