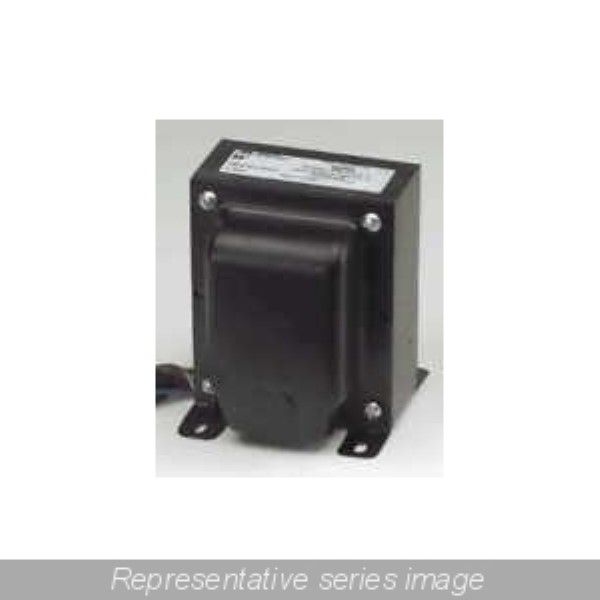

The 1600 Series Shielded Audio Transformer from Hammond is a general-purpose audio transformer with a primary impedance of 1.9kR and a secondary impedance of 16R. It is available in bulk packaging and is RoHS compliant. The transformer has a maximum DC current rating of 806mA and is designed for chassis mount applications. It measures 190.5mm in length and 111.25mm in width, with a height of 5.25inch or 133.35mm when seated. The transformer has an insertion loss of 1dB and is shielded for electromagnetic interference protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1650W datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Height | 5.25inch |
| Height - Seated (Max) | 133.35mm |
| Insertion Loss | 1dB |
| Length | 190.5mm |
| Max DC Current | 806mA |
| Mount | Chassis Mount |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 1.9kR |
| RoHS Compliant | Yes |
| Secondary Impedance | 16R |
| Series | 1600 |
| Shielding | Shielded |
| Termination | Wire Leads |
| Weight | 28lb |
| Width | 111.25mm |
| RoHS | Compliant |
