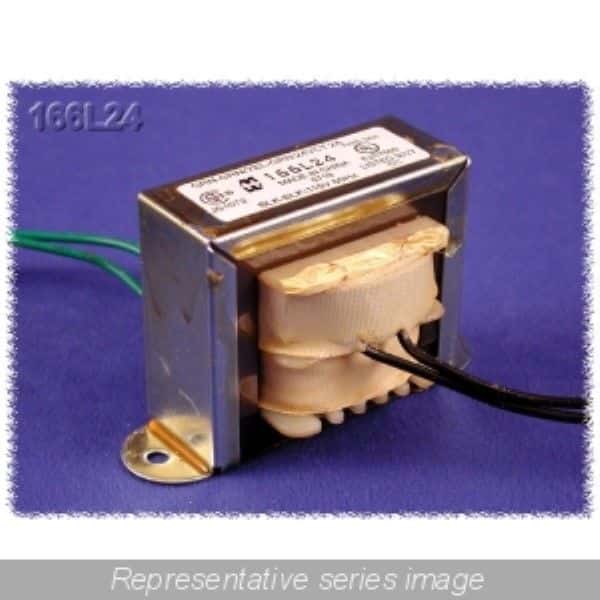

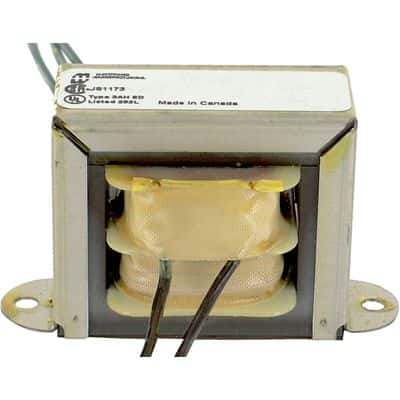

Split bobbin power transformer, chassis mountable, featuring a single primary winding and a single secondary winding. Delivers 28V output at 1A current, operating from a 115V supply at 60Hz. Constructed with wire lead terminations and a robust split bobbin design for enhanced safety and insulation. Compliant with RoHS standards, this transformer operates within a temperature range of 0°C to 130°C and holds UL and CSA approvals. Dimensions include a height of 50.8mm, length of 82.55mm, and width of 50.8mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 166J28 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Current Rating | 1A |
| Frequency | 60Hz |
| Height | 50.8mm |
| Height - Seated (Max) | 50.8mm |
| Length | 82.55mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Mount | Chassis Mount, Panel |
| Operating Supply Voltage | 115V |
| Output Current | 1A |
| Output Voltage | 28V |
| Packaging | Bulk |
| Primary Type | SINGLE |
| Primary Winding(s) | Single |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Single |
| Series | 166 |
| Size | 2inch |
| Termination | Wire Leads |
| Weight | 1.4lb |
| Width | 50.8mm |
| RoHS | Compliant |
