The Hammond 170DE general purpose transformer features wire lead connectors and a compact design with dimensions of 123.9mm in height, 95.3mm in length, and 127mm in width. Weighing 10lb, this transformer is suitable for various applications. It is compliant with RoHS regulations and is available in bulk packaging.
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Hammond 170DE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Hammond 170DE technical specifications.
General
| Connector Type A | Wire Leads |
| Connector Type B | Wire Leads |
| Height | 123.9mm |
| Length | 95.3mm |
| Number of Outputs | 1 |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 170 |
| Termination | Quick Connect |
| Weight | 10lb |
| Width | 127mm |
Compliance
| RoHS | Compliant |
Datasheet
Hammond 170DE Datasheet
Download the complete datasheet for Hammond 170DE to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

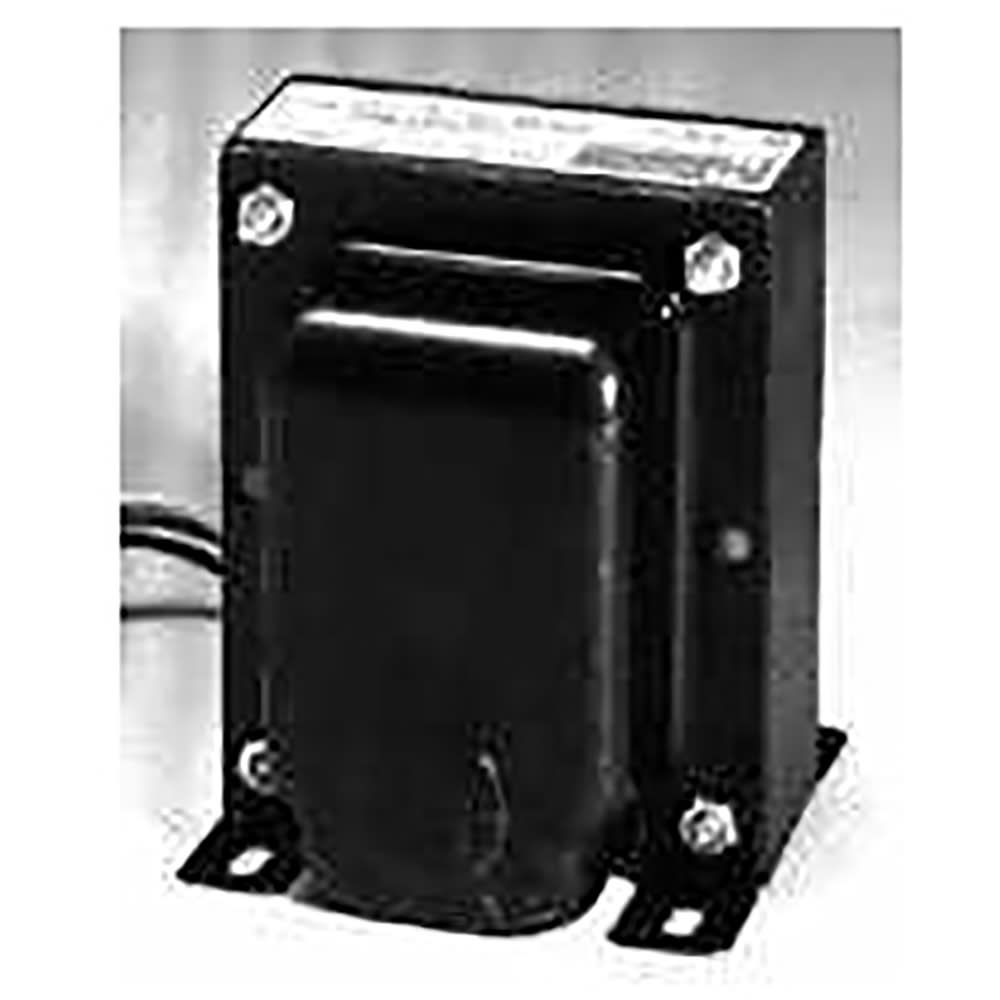

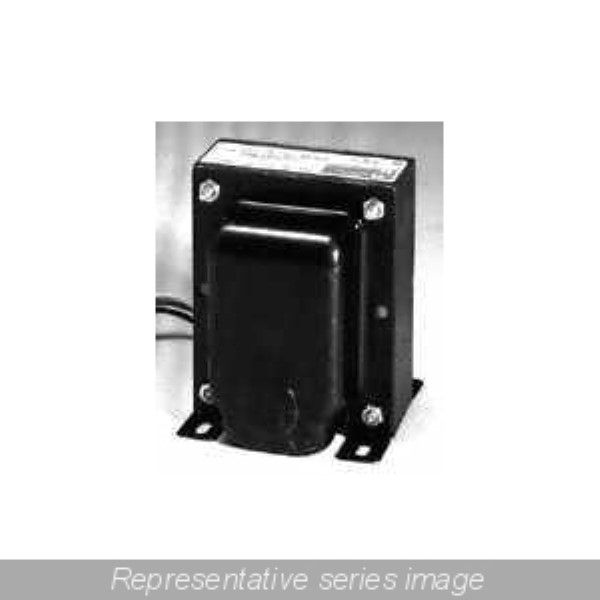

Product Images
