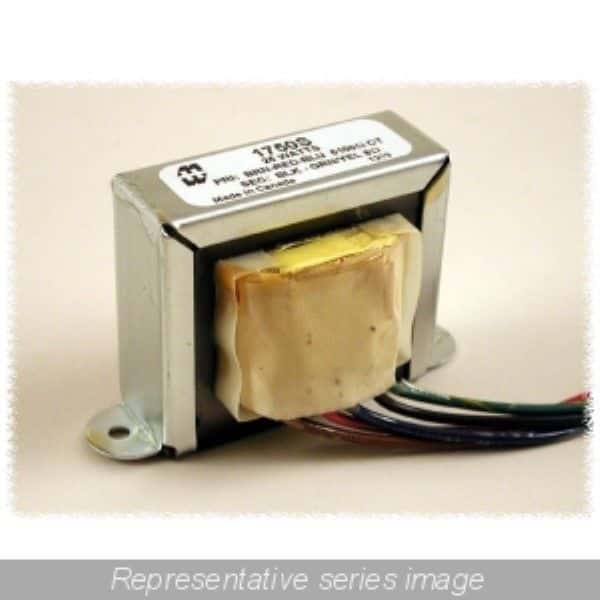

Hammond
1750H
Audio Transformer 28.72:1 1500Vrms 428Ohm Prim. DCR 0.47Ohm Sec. DCR 5 Terminal Wire Lead Flange Mount
MountingChassis Mount
Inductance94.74H
Quick Jump:
Technical Specifications
Hammond 1750H technical specifications.
General
DC Resistance (DCR)
428R
Height
2.308inch
Height - Seated (Max)
60.22mm
Inductance
94.74H
Insertion Loss
1dB
Lead Free
Lead Free
Length
94.23mm
Mount
Chassis Mount
Package Quantity
1
Packaging
Box
Primary Impedance
6.6kR
RoHS Compliant
Yes
Secondary Impedance
8R
Series
1750
Shielding
Unshielded
Termination
Wire Leads
Turns Ratio
28.72:1
Weight
0.625lb
Width
60.96mm
Compliance
RoHS
Compliant
Datasheet
Hammond 1750H Datasheet
Download the complete datasheet for Hammond 1750H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
