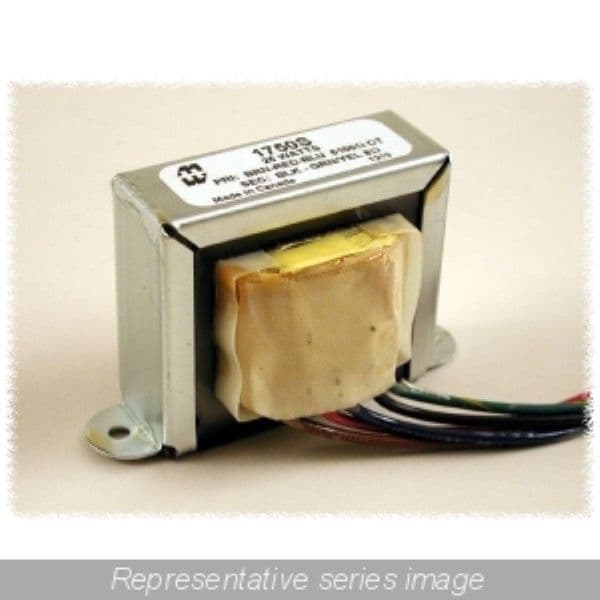

The Hammond 1750P general purpose transformer features a 14.24:1 turns ratio and a maximum DC resistance of 900R. It is designed for chassis mount applications and has a seated height of 80.98mm. The transformer has a length of 95.25mm and a width of 78.49mm, with a weight of 0.625lb. It is packaged in a box and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1750P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| DC Resistance (DCR) | 81.8R |
| Height - Seated (Max) | 80.98mm |
| Insertion Loss | 1dB |
| Length | 95.25mm |
| Mount | Chassis Mount |
| Package Quantity | 1 |
| Packaging | Box |
| Resistance | 900R |
| RoHS Compliant | Yes |
| Series | 1750 |
| Termination | Solder |
| Turns Ratio | 14.24:1 |
| Weight | 0.625lb |
| Width | 78.49mm |
| RoHS | Compliant |
