Hammond
1750V
Audio Transformer 15.93:1 2000Vrms 138Ohm Prim. DCR 0.72Ohm Sec. DCR 5 Terminal Wire Lead Flange Mount
MountingChassis Mount
Quick Jump:
Technical Specifications
Hammond 1750V technical specifications.
General
DC Resistance (DCR)
138R
Height - Seated (Max)
97.61mm
Insertion Loss
1dB
Lead Free
Lead Free
Length
84.46mm
Mount
Chassis Mount
Package Quantity
1
Packaging
Box
RoHS Compliant
Yes
Series
1750
Termination
Wire Leads
Turns Ratio
15.93:1
Weight
0.625lb
Width
79.38mm
Compliance
RoHS
Compliant
Datasheet
Hammond 1750V Datasheet
Download the complete datasheet for Hammond 1750V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

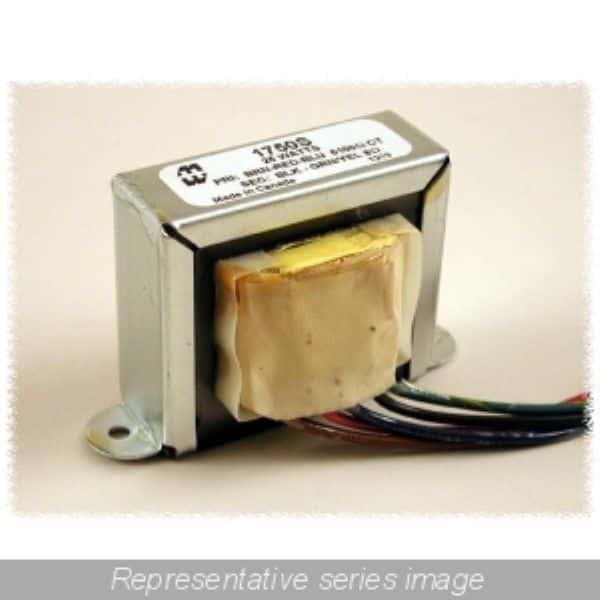

Product Images
