Technical Specifications
Hammond 229A120 technical specifications.
General
| Approvals | cULus |
| Current Rating | 50mA |
| Height | 0.85inch |
| Height - Seated (Max) | 21.59mm |
| Length | 39.62mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 50mA |
| Mount | Through Hole, PCB |
| Package Quantity | 1 |
| Primary Winding(s) | Dual |
| RoHS Compliant | No |
| Secondary Winding(s) | Dual |
| Series | 229 |
| Termination | PC Pin |
| Weight | 0.6lb |
| Width | 47.75mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Hammond 229A120 Datasheet
Download the complete datasheet for Hammond 229A120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

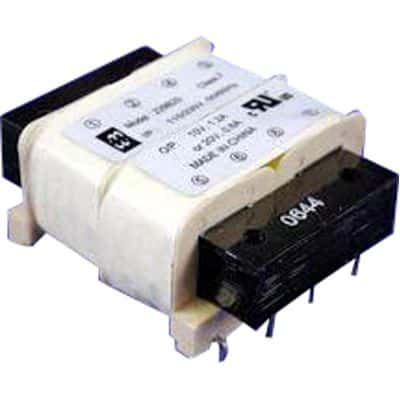

Product Images
