Technical Specifications

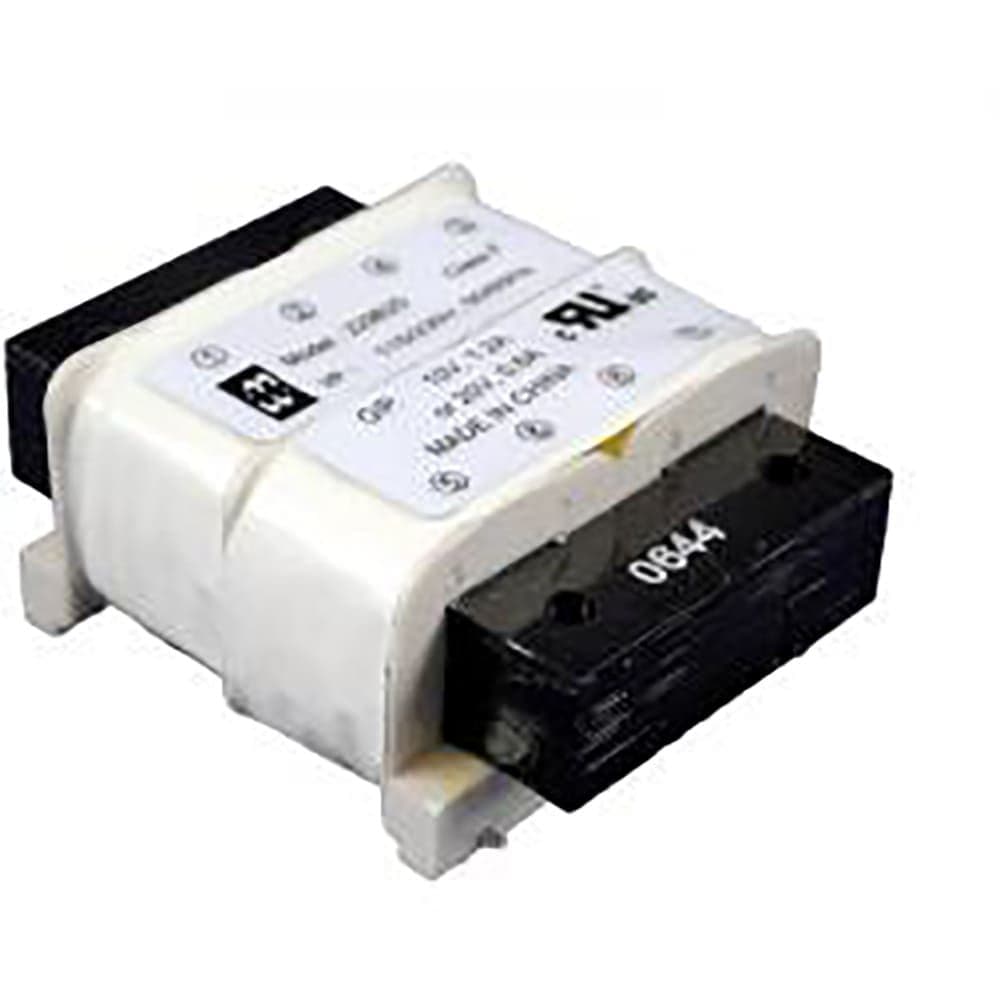

Hammond 229E10 technical specifications.
General
Current Rating
500mA
Height
16.51mm
Height - Seated (Max)
16.51mm
Length
39.62mm
Max Operating Temperature
130°C
Min Operating Temperature
0°C
Max Output Current
250mA
Mount
Through Hole
Package Quantity
1
Primary Winding(s)
Dual
RoHS Compliant
Yes
Secondary Winding(s)
Dual
Series
229
Termination
PC Pin
Weight
0.22lb
Width
47.75mm
Compliance
RoHS
Compliant
Datasheet
Hammond 229E10 Datasheet
Download the complete datasheet for Hammond 229E10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
