Technical Specifications
Hammond 560G technical specifications.
General
| Package/Case | 600 |
| Frequency | 30kHz |
| Height | 0.85inch |
| Height - Seated (Max) | 21.59mm |
| Insertion Loss | 1dB |
| Length | 33.78mm |
| Mount | Through Hole, PCB |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 150R |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | 560 |
| Shielding | Shielded |
| Termination | PC Pin |
| Weight | 0.25lb |
| Width | 1.33inch |
Compliance
| RoHS | Compliant |
Datasheet
Hammond 560G Datasheet
Download the complete datasheet for Hammond 560G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

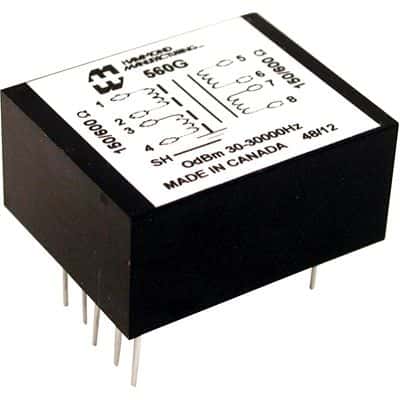

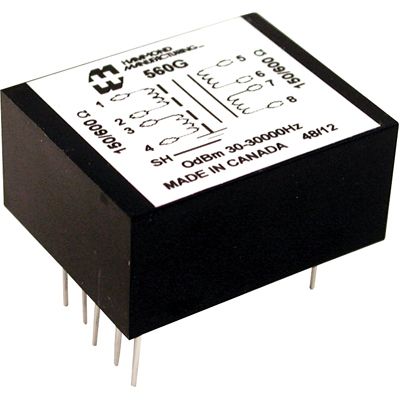

Product Images
