Chassis mount power transformer with single primary and single secondary windings. Features wire lead termination and a maximum operating temperature of 105°C. Dimensions include a height of 4.5 inches (114.3mm), length of 95.25mm, and width of 5.38 inches. Maximum output current is 300mA, with a weight of 12lb. Operating temperature range is 0°C to 105°C.
MountingChassis Mount
Quick Jump:
Technical Specifications
Hammond 720 technical specifications.
General
| Height | 4.5inch |
| Height - Seated (Max) | 114.3mm |
| Length | 95.25mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 300mA |
| Mount | Chassis Mount |
| Package Quantity | 1 |
| Primary Winding(s) | Single |
| RoHS Compliant | No |
| Secondary Winding(s) | Single |
| Series | 700 |
| Termination | Wire Leads |
| Weight | 12lb |
| Width | 5.38inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Hammond 720 Datasheet
Download the complete datasheet for Hammond 720 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

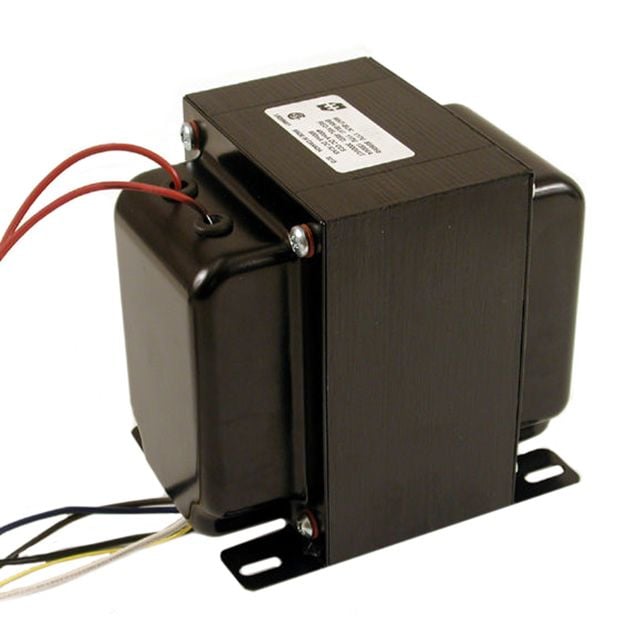

Product Images
