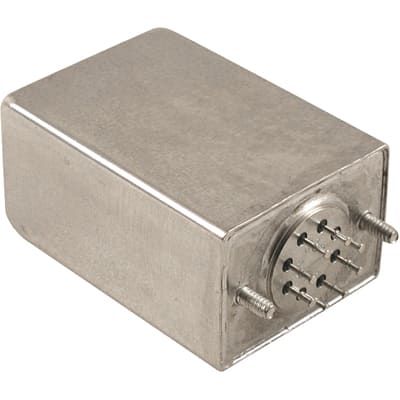

The Hammond 844 is a shielded chassis mount transformer with a primary impedance of 40kR and a secondary impedance of 500R. It measures 44.45mm in length and 1.25inch in width, with a height of 2.56inch and a seated height of 65.02mm. The transformer is packaged in bulk and is RoHS compliant. It has a weight of 0.5lb and is designed for use in audio applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 844 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 600 |
| Height | 2.56inch |
| Height - Seated (Max) | 65.02mm |
| Insertion Loss | 1dB |
| Length | 44.45mm |
| Mount | Chassis Mount |
| Package Quantity | 1 |
| Packaging | Bulk |
| Primary Impedance | 40kR |
| RoHS Compliant | Yes |
| Secondary Impedance | 500R |
| Series | 800 |
| Shielding | Shielded |
| Termination | PC Pin |
| Weight | 0.5lb |
| Width | 1.25inch |
| RoHS | Compliant |
