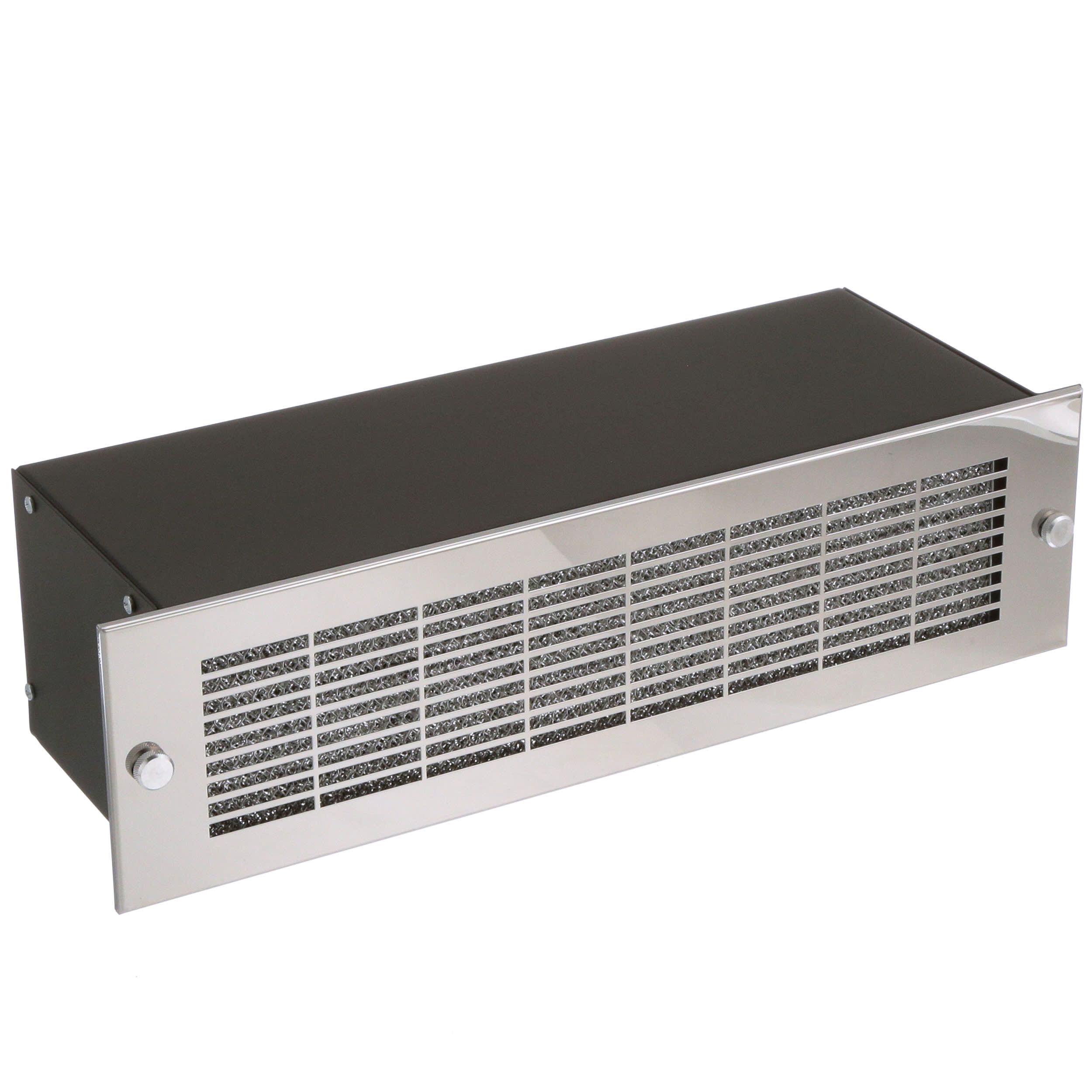

Rack cabinet intake blower, 300 CFM airflow, 115V AC, 1.4A current rating, 3150 RPM speed. Features ball bearing, steel construction, and black body color. Dimensions: 5.25" height, 17.2" length, 6.26" width. UL and CSA approvals. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond HB3250A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Bearing Type | Ball |
| Body Color | Black |
| Package/Case | 300 |
| Color | Black |
| Current Rating | 1.4A |
| Height | 5.25inch |
| Length | 17.2inch |
| Material | Steel |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HB |
| Speed | 3150RPM |
| Voltage Rating (AC) | 115V |
| Weight | 18lb |
| Width | 6.26inch |
| RoHS | Compliant |
