Hall effect sensor offering 1% linearity and 1.6% accuracy. Features a 40mm length, 25mm width, and 55mm depth, with a chassis mount and screw termination. Operates within a -40°C to 125°C temperature range, accepting 10-30V DC supply voltage and delivering 0.50-4.50V output. Rated IP67 for environmental protection.
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell RTY090HVNAX technical specifications.
General
Accuracy
1.6%
Depth
55mm
Length
40mm
Linearity
1%
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
500mV
Max Supply Voltage (DC)
30V
Min Supply Voltage (DC)
10V
Max Supply Voltage
30V
Min Supply Voltage
10V
Mount
Chassis Mount, Screw
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
No
RoHS Compliant
No
Series
RTY
Switching Current
47mA
Termination
Connector
Tolerance
1.6%
DC Rated Voltage
30V
Width
25mm
Compliance
RoHS
Not CompliantNo
Datasheet
Honeywell RTY090HVNAX Datasheet
Download the complete datasheet for Honeywell RTY090HVNAX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

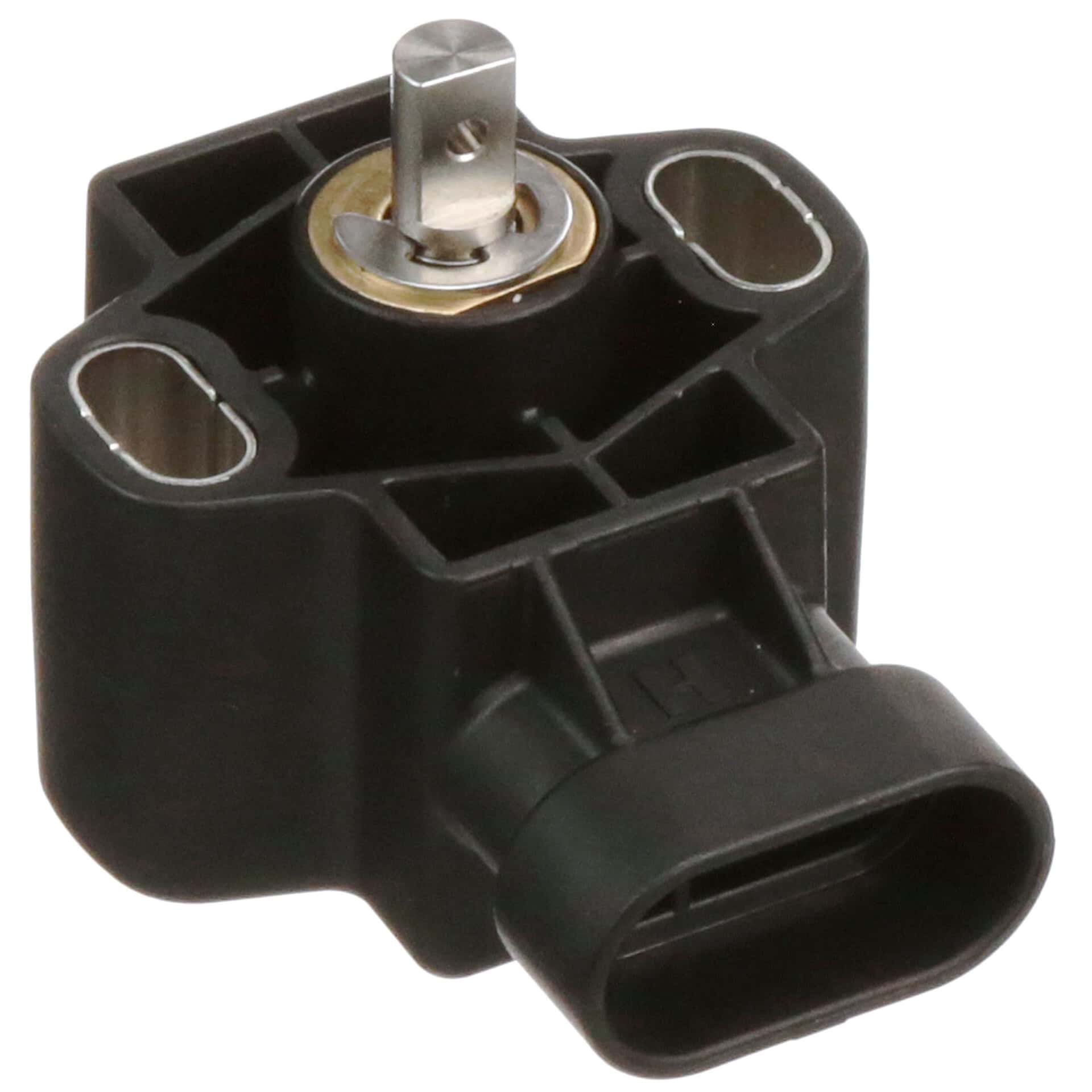

Product Images
