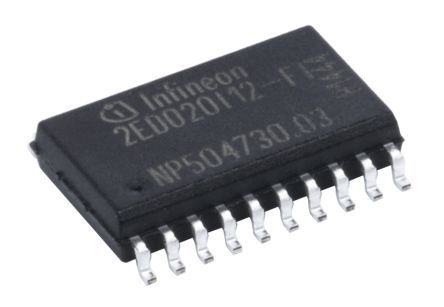

The 2ED020I12-FI is a dual gate driver IC from Infineon, packaged in a SOIC-20 package. It operates over a temperature range of -40°C to 125°C and has a maximum supply voltage of 18V. The device can handle a maximum output current of 2A and has a propagation delay of 130ns. It is lead-free and halogen-free, and is compliant with RoHS regulations. The IC has a width of 7.6mm and a length of 12.8mm, with a height of 2.45mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon 2ED020I12-FI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Fall Time | 35ns |
| Halogen Free | Halogen Free |
| Height | 2.45mm |
| Lead Free | Lead Free |
| Length | 12.8mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 14V |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Propagation Delay | 130ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 7.6mm |
| RoHS | Compliant |
