Technical Specifications
Infineon BAS21 technical specifications.
General
| Package/Case | SOT |
| Element Configuration | Single |
| Forward Current | 625mA |
| Height | 1mm |
| Length | 2.9mm |
| Max Forward Surge Current (Ifsm) | 4A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 100nA |
| Reverse Recovery Time | 50ns |
| RoHS Compliant | Yes |
| Voltage | 250V |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BAS21 Datasheet
Download the complete datasheet for Infineon BAS21 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

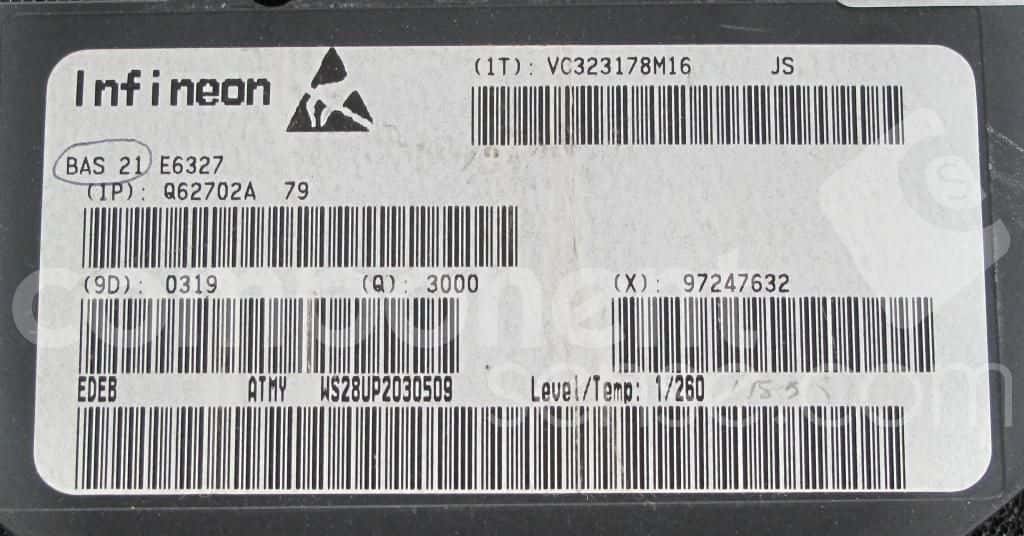

Product Images
