PackageTO-236-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BAS4006E6433HTMA1 technical specifications.
General
Average Rectified Current
120mA
Package/Case
TO-236-3
Forward Current
120mA
Height
0.9mm
Length
2.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
1uA
Max Reverse Voltage (DC)
40V
Mount
Surface Mount
Package Quantity
10000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
200mA
Radiation Hardening
No
Reverse Recovery Time
100ps
RoHS Compliant
Yes
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Infineon BAS4006E6433HTMA1 Datasheet
Download the complete datasheet for Infineon BAS4006E6433HTMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

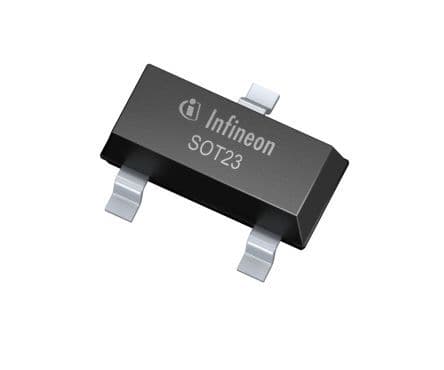

Product Images
