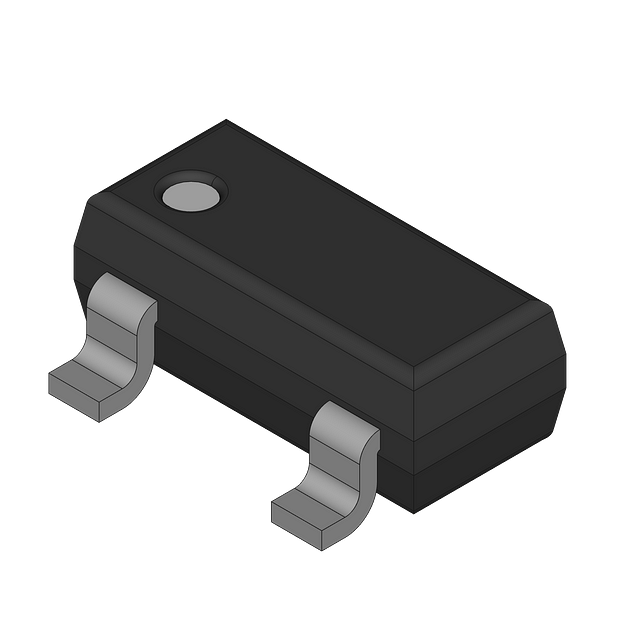

This silicon Schottky diode is intended for general-purpose high-speed switching, circuit protection, voltage clamping, and high-level detecting and mixing. It supports a 70 V reverse voltage, 70 mA forward current, and 250 mW total power dissipation. The device operates over a -55 °C to 150 °C temperature range and is housed in a SOT-23 package variant identified as R-PDSO-G3. At 25 °C it provides 1.6 pF typical diode capacitance, 375 mV typical forward voltage at 1 mA, and 100 ps maximum charge carrier life time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BAS70-04 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BAS70-04 technical specifications.
| Package/Case | SOT |
| Element Configuration | Dual |
| Forward Current | 70mA |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Voltage | 70V |
| RoHS | Compliant |
