The BAS70-07WE6327 is a surface mount general purpose rectifier from Infineon with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It has a maximum repetitive reverse voltage of 70V and a maximum reverse current of 100nA. The device is lead free and packaged in tape and reel with 3000 units per reel. It has a reverse recovery time of 100ps and a maximum forward surge current of 100mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BAS70-07WE6327 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BAS70-07WE6327 technical specifications.
| Average Rectified Current | 70mA |

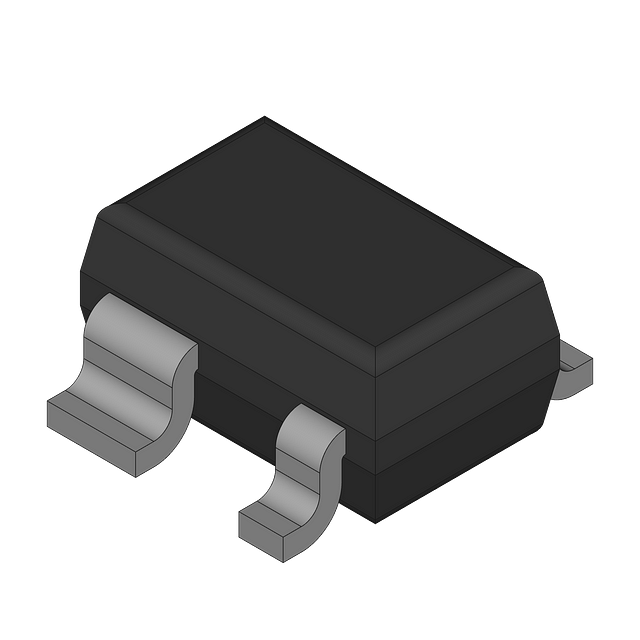

| Package/Case | SOT-343-4 |
| Current Rating | 70mA |
| Forward Current | 70mA |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 100mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 70V |
| Max Reverse Current | 100nA |
| Max Reverse Voltage (DC) | 70V |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reverse Recovery Time | 100ps |
| DC Rated Voltage | 70V |
| RoHS | Compliant |
