Infineon
BAS7005E6433HTMA1
Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3
PackageTO-236-3
Current Rating70mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BAS7005E6433HTMA1 technical specifications.
General
Average Rectified Current
70mA
Package/Case
TO-236-3
Contact Plating
Tin, Matte
Current Rating
70mA
Forward Current
70mA
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
70V
Max Reverse Voltage (DC)
70V
Mount
Surface Mount
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
100mA
Reverse Recovery Time
100ps
RoHS Compliant
No
DC Rated Voltage
70V
Compliance
RoHS
Not Compliant
Datasheet
Infineon BAS7005E6433HTMA1 Datasheet
Download the complete datasheet for Infineon BAS7005E6433HTMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

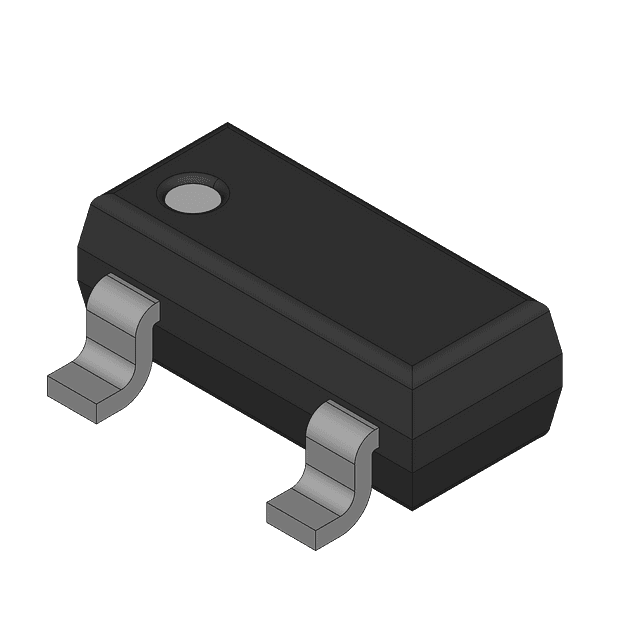

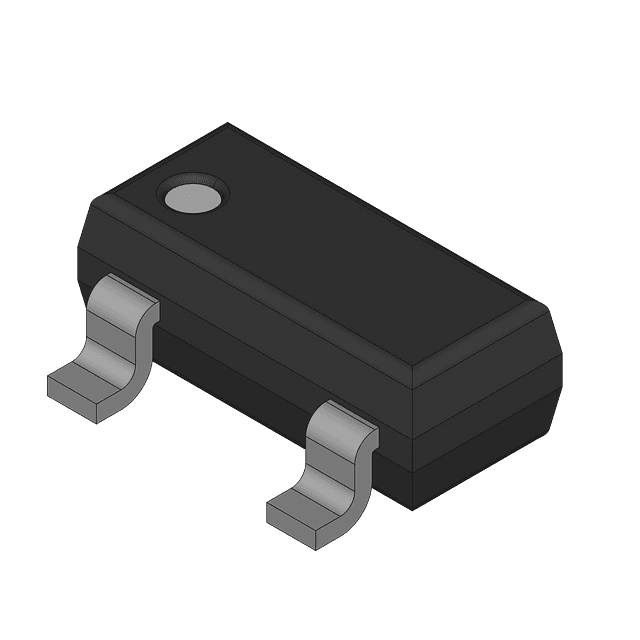

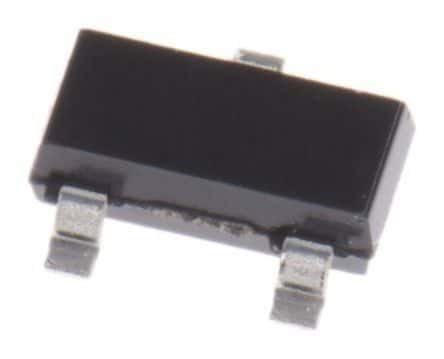

Product Images
