Infineon
BAS7006E6433HTMA1
Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3
PackageTO-236-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BAS7006E6433HTMA1 technical specifications.
General
| Average Rectified Current | 70mA |
| Package/Case | TO-236-3 |
| Forward Current | 70mA |
| Height | 0.9mm |
| Length | 2.9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 70V |
| Max Reverse Current | 100nA |
| Max Reverse Voltage (DC) | 70V |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 100mA |
| Radiation Hardening | No |
| Reverse Recovery Time | 100ps |
| RoHS Compliant | No |
| Width | 1.3mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Infineon BAS7006E6433HTMA1 Datasheet
Download the complete datasheet for Infineon BAS7006E6433HTMA1 to view detailed technical specifications.
No datasheet is available for this part.

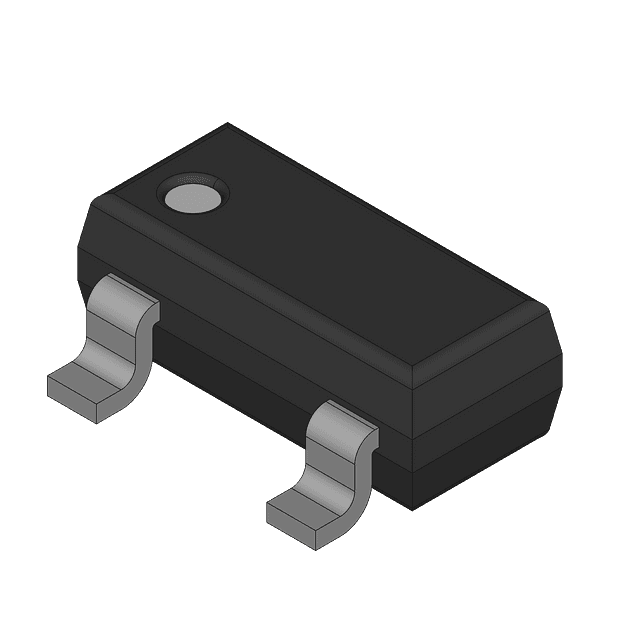

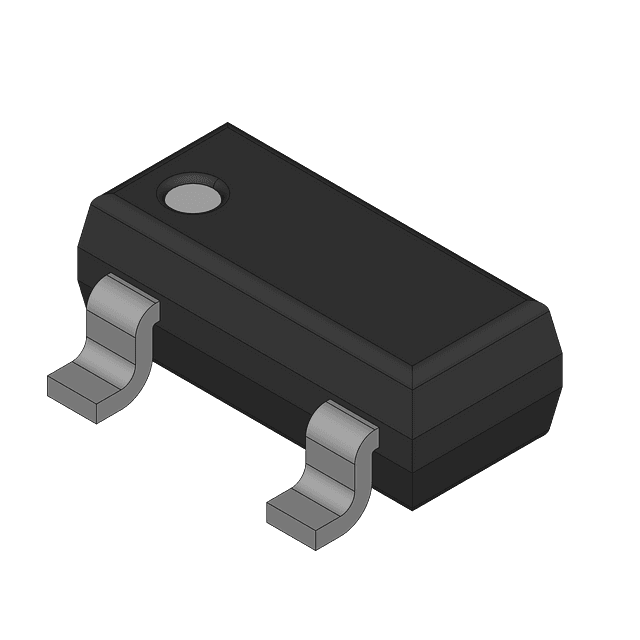

Product Images
