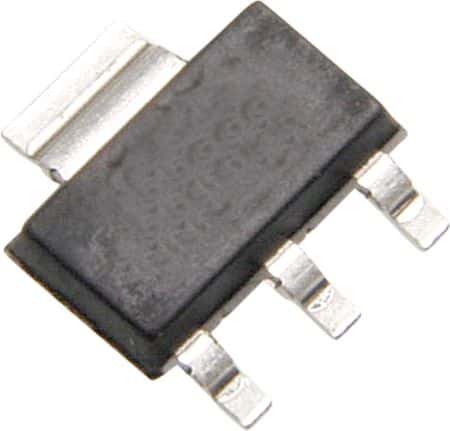

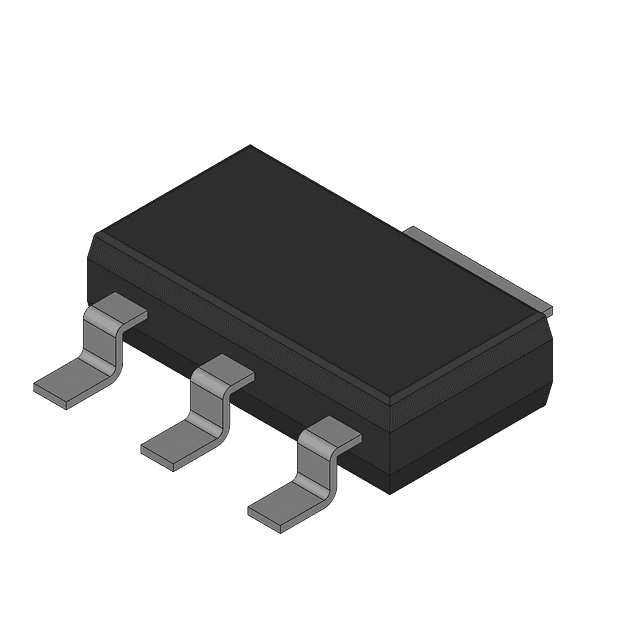

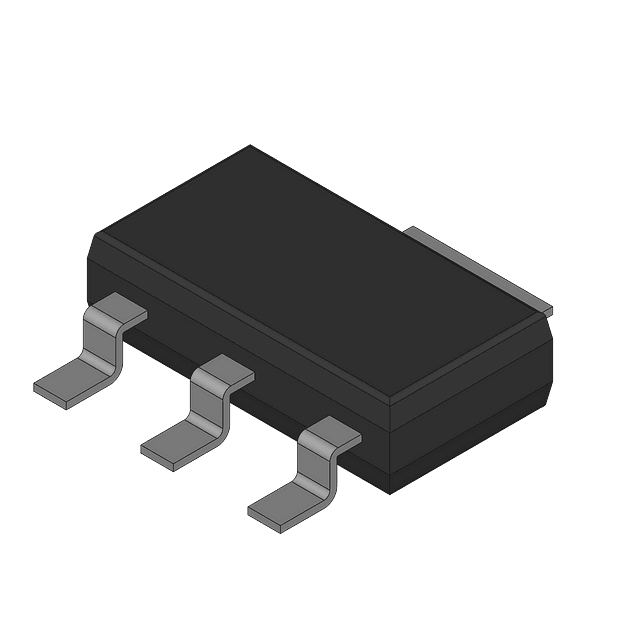

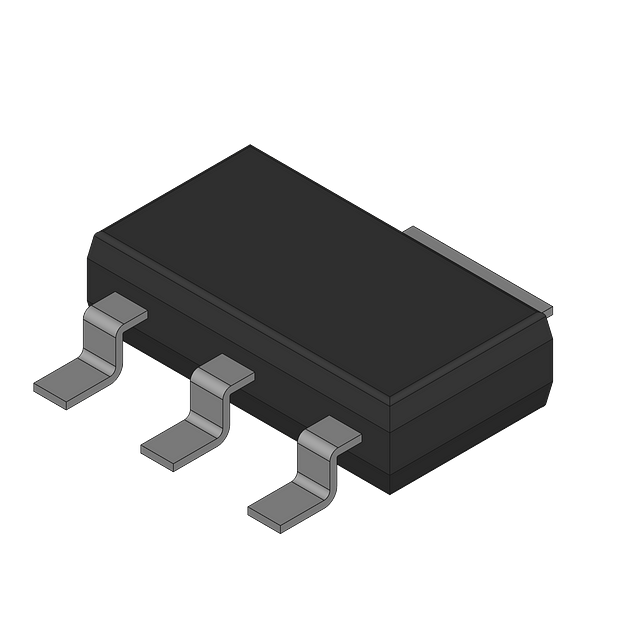

The BCP56-16 is a small outline NPN bipolar junction transistor from Infineon. It has a collector base voltage rating of 100V and a collector emitter saturation voltage of 500mV. The device can handle a maximum collector current of 1A and operates at a maximum frequency of 100MHz. It is packaged in a tape and reel format and is RoHS compliant. The transistor has a maximum power dissipation of 2W and can withstand an operating temperature range of -55°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BCP56-16 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Saturation Voltage | 500mV |
| Current | 1A |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 1.6mm |
| Length | 6.5mm |
| Max Collector Current | 1A |
| Max Frequency | 100MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 2W |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 1.5W |
| RoHS Compliant | Yes |
| Voltage | 80V |
| Width | 3.5mm |
| RoHS | Compliant |
