Infineon
BCR133
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT PACKAGE-3
PackageSOT
PolarityNPN
Quick Jump:
Technical Specifications
Infineon BCR133 technical specifications.
General
Package/Case
SOT
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
50V
Emitter Base Voltage (VEBO)
10V
Height
0.9mm
hFE Min
30
Length
2.9mm
Max Collector Current
100mA
Max Operating Temperature
150°C
Max Power Dissipation
200mW
Packaging
Tape and Reel
Polarity
NPN
RoHS Compliant
Yes
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Infineon BCR133 Datasheet
Download the complete datasheet for Infineon BCR133 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

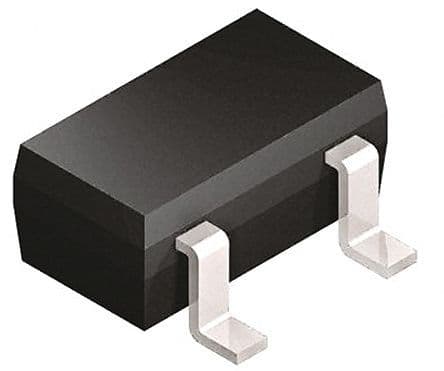

Product Images
