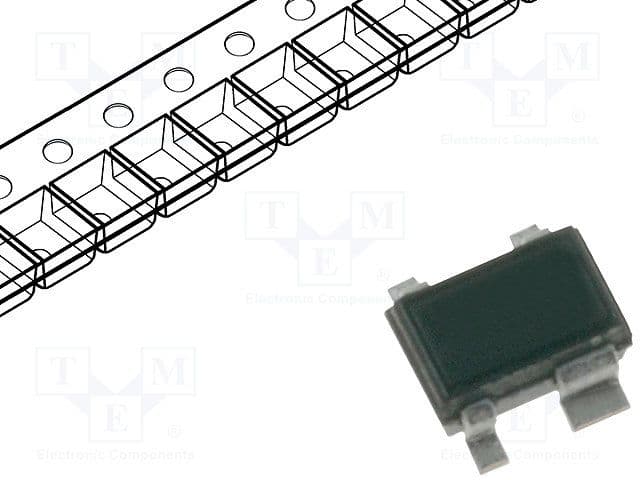

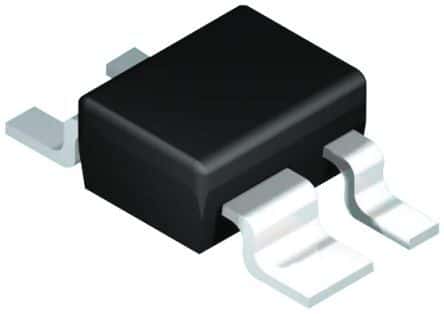

Single-channel LED driver IC for surface mount applications, featuring PWM dimming and a maximum output current of 20mA. Operates with a supply voltage range of 1.4V to 18V, and offers an output current per channel of 60mA. Packaged in a SOT-343 (PDSO4) case with tin matte contact plating, this RoHS compliant component is designed for automotive environments and operates up to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BCR402WH6327XTSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-343 |
| Contact Plating | Tin, Matte |
| Dimming | PWM |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Max Output Current | 20mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 20mA |
| Output Current per Channel | 60mA |
| Output Voltage | 18V |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Supply Current | 540uA |
| Termination | SMD/SMT |
| RoHS | Compliant |
