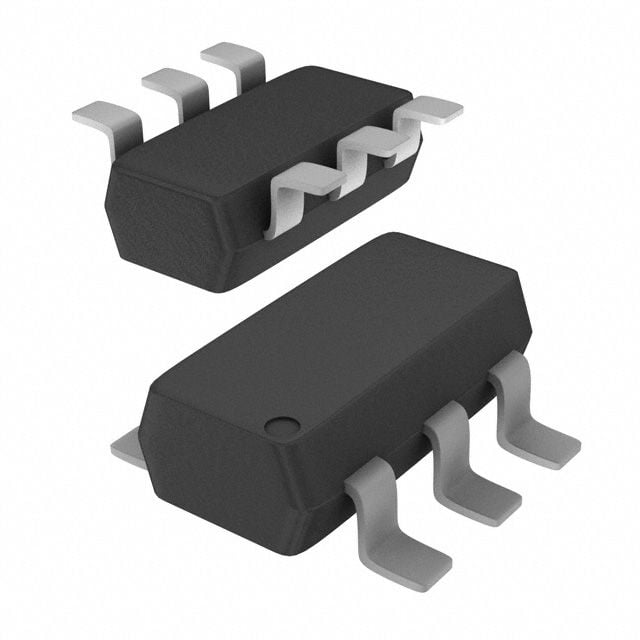

Surface mount LED driver IC featuring 1 channel and 1 output, capable of delivering up to 85mA per channel. Operates with input voltages from 8V to 27V and supports PWM dimming up to 1MHz. This component offers a maximum output current of 70mA and an output voltage of 6V, with a maximum operating temperature of 150°C. Packaged in a compact SC-74 (TSOP-6) with tin, matte contact plating, it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BCR450E6327HTSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SC |
| Contact Plating | Tin, Matte |
| Current Rating | 85mA |
| Dimming | PWM |
| Frequency | 1MHz |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Max Input Voltage | 27V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 70mA |
| Max Supply Voltage | 27V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 90mA |
| Output Current per Channel | 85mA |
| Output Voltage | 6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| RoHS | Compliant |
