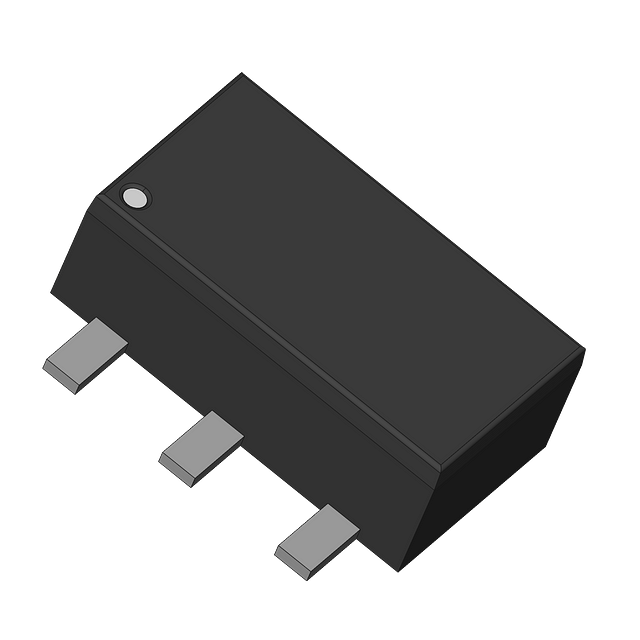

The BCX55-16E6327 is a NPN bipolar junction transistor with a maximum collector-emitter breakdown voltage of 60V and a maximum collector current of 1A. It has a gain bandwidth product of 100MHz and a maximum power dissipation of 2W. The transistor is packaged in a TO-243AA surface mount package and is suitable for operation over a temperature range of -65°C to 150°C. The device is RoHS compliant and available in quantities of 1000 per reel.
Sign in to ask questions about the Infineon BCX55-16E6327 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BCX55-16E6327 technical specifications.
| Package/Case | TO-243AA |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector-emitter Voltage-Max | 500mV |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 100MHz |
| hFE Min | 25 |
| Max Breakdown Voltage | 60V |
| Max Collector Current | 1A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 2W |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 100MHz |
| RoHS | Compliant |
