Frequency800MHz
PackageSOT
Voltage Rating8V
Current Rating40mA
Quick Jump:
Technical Specifications
Infineon BF2040E6814HTSA1 technical specifications.
General
Package/Case
SOT
Contact Plating
Tin
Continuous Drain Current (ID)
40mA
Current Rating
40mA
Drain to Source Voltage (Vdss)
8V
Frequency
800MHz
Gain
23dB
Gate to Source Voltage (Vgs)
15V
Halogen Free
Not Halogen Free
Lead Free
Lead Free
Max Frequency
1GHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Mount
Surface Mount
Noise Figure
1.6dB
Number of Elements
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Test Voltage
5V
Voltage Rating
8V
DC Rated Voltage
8V
Compliance
RoHS
Compliant
Datasheet
Infineon BF2040E6814HTSA1 Datasheet
Download the complete datasheet for Infineon BF2040E6814HTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

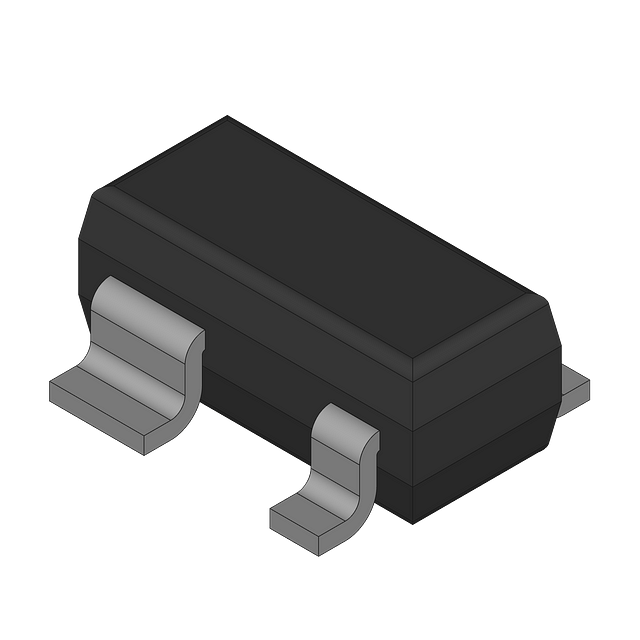

Product Images
