Surface mount NPN RF small signal bipolar transistor designed for C-band applications. Features a 25GHz transition frequency and 19.5dB power gain, with a low noise figure of 1.1dB. Operates with a maximum collector current of 0.06A and a collector emitter breakdown voltage of 5.5V. Packaged in a 1.4mm x 0.8mm x 0.55mm TSFP-4-1 plastic package, this component is halogen-free and RoHS compliant.
Frequency25GHz
PackageSMD/SMT
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Infineon BFP420FH6327XTSA1 technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Base Voltage (VCBO) | 15V |
| Collector Emitter Breakdown Voltage | 5.5V |
| Collector Emitter Voltage (VCEO) | 4.5V |
| Contact Plating | Tin, Matte |
| Emitter Base Voltage (VEBO) | 1.5V |
| Frequency | 25GHz |
| Gain | 19.5dB |
| Halogen Free | Halogen Free |
| Height | 0.55mm |
| Lead Free | Lead Free |
| Length | 1.4mm |
| Max Breakdown Voltage | 5.5V |
| Max Collector Current | 60mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 210mW |
| Mount | Surface Mount |
| Noise Figure | 1.1dB |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 210mW |
| Power Gain | 19.5dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 25GHz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BFP420FH6327XTSA1 Datasheet
Download the complete datasheet for Infineon BFP420FH6327XTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

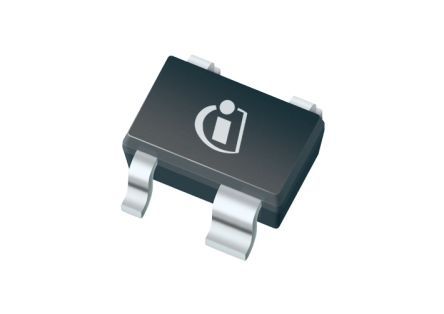

Product Images
