Technical Specifications
Infineon BFP650 technical specifications.
General
| Package/Case | SOT |
| Collector Base Voltage (VCBO) | 13V |
| Collector Emitter Breakdown Voltage | 4.5V |
| Collector Emitter Voltage (VCEO) | 4V |
| Emitter Base Voltage (VEBO) | 1.2V |
| Gain | 21.5dB |
| Halogen Free | Halogen Free |
| Height | 0.9mm |
| Length | 2mm |
| Max Collector Current | 150mA |
| Max Frequency | 37GHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Transition Frequency | 37GHz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BFP650 Datasheet
Download the complete datasheet for Infineon BFP650 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

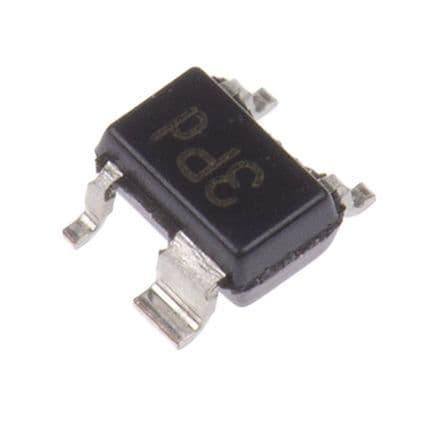

Product Images
