Technical Specifications
Infineon BGA420H6327XTSA1 technical specifications.
General
| Package/Case | SOT-343 |
| Frequency | 3GHz |
| Gain | 13dB |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 90mW |
| Max Supply Voltage | 6V |
| Mount | Surface Mount |
| Noise Figure | 2.3dB |
| Number of Channels | 1 |
| Operating Supply Current | 6.7mA |
| P1dB | -2.5dBm |
| Packaging | Tape and Reel |
| Power Dissipation | 90mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Test Frequency | 1GHz |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BGA420H6327XTSA1 Datasheet
Download the complete datasheet for Infineon BGA420H6327XTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

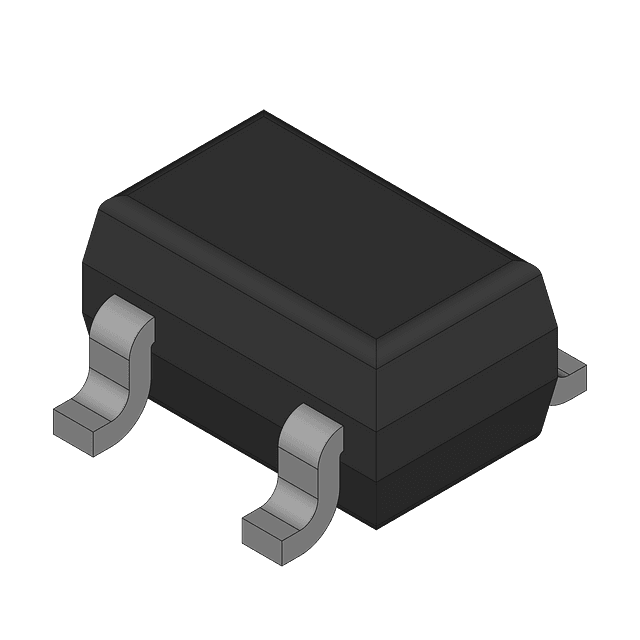

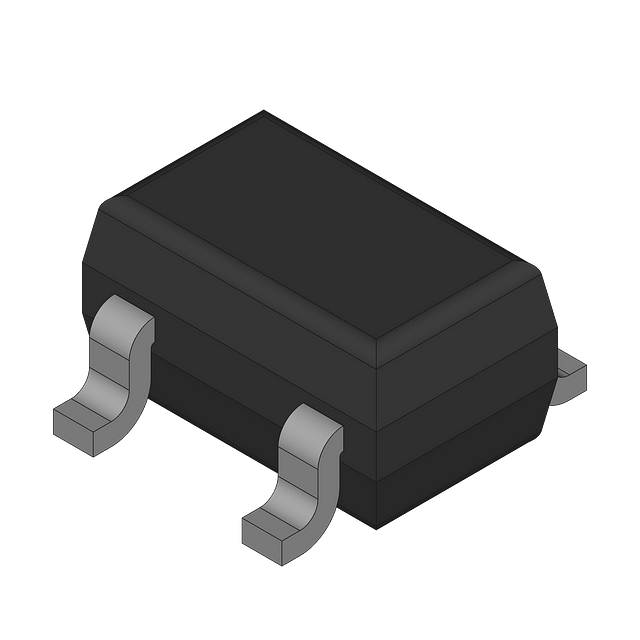

Product Images
