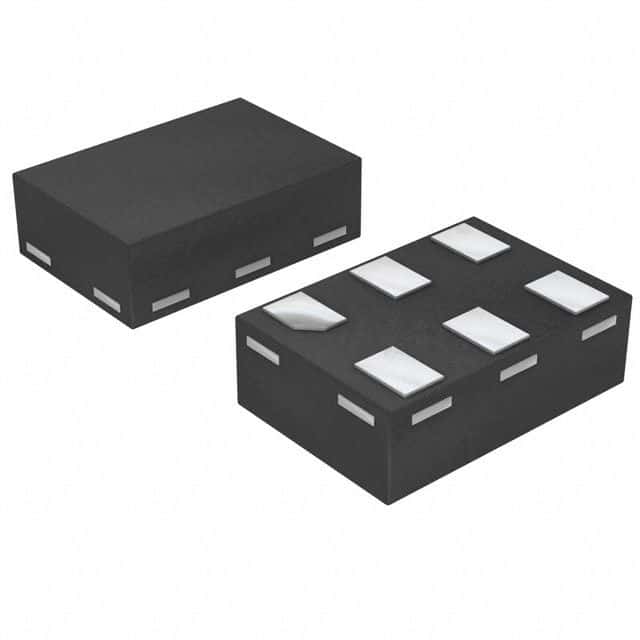

This dual SPDT RF switch from Infineon operates at a supply voltage of 3.3V and is designed for surface mount applications. The device is capable of handling frequencies up to 6GHz and features a throw configuration of SPDT. It is also halogen free and lead free, making it compliant with RoHS regulations. The switch has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BGS12SN6E6327XTSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Halogen Free | Halogen Free |
| Height | 400um |
| Impedance | 50R |
| Insertion Loss | 0.25dB |
| Insertion Loss | 0.65dB |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 15000 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Test Frequency | 6GHz |
| Throw Configuration | SPDT |
| RoHS | Compliant |
