Technical Specifications
Infineon BSA223SP technical specifications.
General
| Continuous Drain Current (ID) | 390mA |
| Current Rating | -390mA |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance | 56pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Rds On Max | 1.2R |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| DC Rated Voltage | -20V |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSA223SP Datasheet
Download the complete datasheet for Infineon BSA223SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

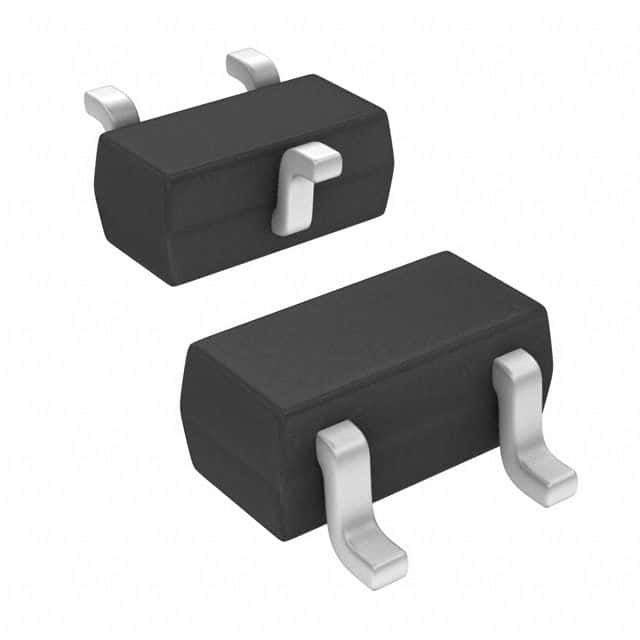

Product Images
